Belimo 01DT-1LL Temperature Sensor
For precise temperature measurement in duct and pipe applications, the Belimo 01DT-1L series temperature sensors offer superior reliability and accuracy. Ideal for integration in heating, ventilation, and air-conditioning systems, these sensors ensure optimal performance and energy efficiency. Click here for the technical data PDF The Belimo 01DT-1L series temperature sensors are designed for measuring temperature in duct and pipe applications, providing reliable and accurate data. The sensors are compatible with a stainless steel or brass thermowell for enhanced protection and extended application possibilities. The IP65 / NEMA 4X rated enclosure ensures durability and protection against environmental factors. Parts Included: Mounting clip, with screws and adhesive foil (A-22D-A11) Type Overview 01DT-1LH: NTC10k (10k2), 50 mm probe length, 6 mm probe diameter 01DT-1LL: NTC10k (10k2), 100 mm probe length, 6 mm probe diameter 01DT-1LN: NTC10k (10k2), 150 mm probe length, 6 mm probe diameter 01DT-1LP: NTC10k (10k2), 200 mm probe length, 6 mm probe diameter 01DT-1LR: NTC10k (10k2), 300 mm probe length, 6 mm probe diameter 01DT-1LT: NTC10k (10k2), 450 mm probe length, 6 mm probe diameter Functional Data: Application: Air, Water Output signal passive temperature: NTC10k (10k2) Measuring range: -50...150°C [-60...300°F] Measuring current: <2 mA @ 25°C [77°F] Accuracy temperature passive: ±0.2°C @ 25°C [±0.35°F @ 77°F] Time constant τ (63%) in water pipe: Typical 7 s with thermowell brass, Typical 9 s with thermowell stainless steel Time constant τ (63%) in the air duct: Typical 210 s @ 0 m/s, Typical 46 s @ 3 m/s Environmental Data: Type of action: Type 1 Rated impulse voltage supply: 0.8 kV Pollution degree: 3 Ambient humidity: Max. 95% RH, non-condensing Ambient temperature: -35...50°C [-30...122°F] Fluid temperature: -50...150°C [-60...300°F] Housing surface temperature: Max. 90°C [195°F] Materials: Cable gland: Plug Adapter: PA66, black; Nut: PA6, black Housing: Cover: PC, orange; Bottom: PC, orange; Seal: NBR70, black; UV resistant Probe material: V4A (1.4404) Optional Accessories: Mounting plate S housing: A-22D-A09 Connection adapter flex conduit: M20x1.5, for cable gland 1x 6 mm (A-22G-A01.1) Mounting flange for sensor probe 6 mm: up to max. 120°C [248°F], Plastic (A-22D-A03) Mounting flange for sensor probe 6 mm: up to max. 260°C, Brass (A-22D-A05) Recommended Accessories for Water: Thermowell Stainless steel, 50 mm, G 1/2", SW27: A-22P-A06 Thermowell Brass, 50 mm, R 1/2", SW22: A-22P-A18 Syringe with thermal paste: A-22P-A44 Compression fitting, Stainless steel, G 1/4" (external thread) for 6 mm, with cutting ring: A-22P-A45 Thermowell Stainless steel, 100 mm, G 1/2", SW27: A-22P-A08 Thermowell Brass, 100 mm, R 1/2", SW22: A-22P-A20 Cold barrier, Plastic, L 50 mm, for thermowell A-22P-A..: A-22P-A51 Thermowell Stainless steel, 150 mm, G 1/2", SW27: A-22P-A10 Thermowell Brass, 150 mm, R 1/2", SW22: A-22P-A22 Adapter for Siemens thermowell: A-22P-A53 Thermowell Stainless steel, 200 mm, G 1/2", SW27: A-22P-A12 Thermowell Brass, 200 mm, R 1/2", SW22: A-22P-A24 Thermowell Stainless steel, 300 mm, G 1/2", SW27: A-22P-A14 Thermowell Brass, 300 mm, R 1/2", SW22: A-22P-A26 Thermowell Stainless steel, 250 mm, G 1/2", SW27: A-22P-A29 Thermowell Brass, 250 mm, R 1/2", SW22: A-22P-A30 Thermowell Stainless steel, 450 mm, G 1/2", SW27: A-22P-A16 Thermowell Brass, 450 mm, R 1/2", SW22: A-22P-A28 Why You Should Buy The Belimo 01DT-1L series temperature sensors are crafted for precision and reliability in demanding HVAC applications. Their robust construction, superior protection class, and high accuracy make them the ideal choice for ensuring optimal performance and energy efficiency. With a wide range of probe lengths and comprehensive accessory options, these sensors offer versatile solutions for various installation requirements. All Belimo products can be found on our website. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£35.70£24.99
-
Belimo 01DT-1LR Duct/Immersion Sensor Temperature
The Belimo 01DT-1LR Duct/Immersion Sensor is designed for precise temperature measurement in duct and pipe applications. Engineered with advanced technology, this sensor is ideal for HVAC systems, providing reliable data for efficient climate control. Its robust construction and IP65/NEMA 4X-rated enclosure ensure durability and resistance to harsh environmental conditions. Click here for the technical data PDF Parts Included: - Mounting Clip with Screws and Adhesive Foil: A-22D-A11 Type Overview: - Output Signal: NTC10k (10k2) - Probe Length: 300 mm - Probe Diameter: 6 mm Electrical Data: - Electrical Connection: Pluggable spring-loaded terminal block, max. 2.5 mm² - Cable Entry: Cable gland with strain relief, ø6...8 mm Functional Data: - Application: Air, Water - Output Signal: Passive temperature NTC10k (10k2) Measuring Data: - Measured Values: Temperature - Temperature Measuring Range: -50...150°C [-60...300°F] - Measuring Current: <2 mA @ 25°C [77°F] - Accuracy Temperature Passive: ±0.2°C @ 25°C [±0.35°F @ 77°F] - Time Constant τ (63%) in Water Pipe: Typical 7 s with thermowell brass, Typical 9 s with thermowell stainless steel - Time Constant τ (63%) in Air Duct: Typical 210 s @ 0 m/s, Typical 46 s @ 3 m/s Safety Data: - Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) - Power Source UL: Class 2 Supply - Degree of Protection IEC/EN: IP65 - Degree of Protection NEMA/UL: NEMA 4X - EU Conformity: CE Marking - Certification IEC/EN: IEC/EN 60730-1 - Quality Standard: ISO 9001 - UL Approval: cULus acc. to UL60730-1A/-2-9, CAN/CSA E60730-1/-2-9 Environmental Conditions: - Type of Action: Type 1 - Rated Impulse Voltage Supply: 0.8 kV - Pollution Degree: 3 - Ambient Humidity: Max. 95% RH, non-condensing - Ambient Temperature: -35...50°C [-30...122°F] - Fluid Temperature: -50...150°C [-60...300°F] - Housing Surface Temperature: Max. 90°C [195°F] Materials: - Cable Gland Plug Adapter: PA66, black - Nut: PA6, black - Housing Cover: PC, orange - Bottom: PC, orange - Seal: NBR70, black, UV resistant - Probe Material: V4A (1.4404) Optional Accessories: - Mounting Plate S Housing: A-22D-A09 - Connection Adapter Flex Conduit, M20x1.5, for Cable Gland 1x 6 mm, Multipack 10 pcs.: A-22G-A01.1 - Mounting Flange for Sensor Probe 6 mm, up to max. 120°C [248°F], Plastic: A-22D-A03 - Mounting Flange for Sensor Probe 6 mm, up to max. 260°C, Brass: A-22D-A05 Recommended Accessories for Water Applications: - Thermowell Stainless Steel, 50 mm, G 1/2", SW27: A-22P-A06 - Thermowell Brass, 50 mm, R 1/2", SW22: A-22P-A18 - Syringe with Thermal Paste: A-22P-A44 - Compression Fitting, Stainless Steel, G 1/4" (external thread) for 6 mm, with Cutting Ring: A-22P-A45 Reliable Performance: Ensures accurate temperature measurement across a wide range of applications. Durable Construction: IP65/NEMA 4X rated enclosure provides excellent protection against environmental factors. Versatile Use: Suitable for both air and water applications with a variety of probe lengths to meet specific requirements. Compliance and Quality: Certified to meet international standards, ensuring quality and safety. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£39.90£27.93
-

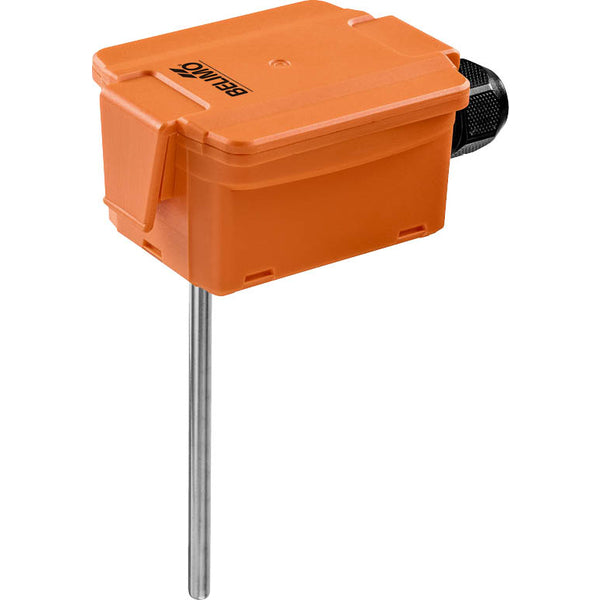

Belimo 01DT-1NN duct/immersion temperature sensor
The Belimo 01DT-1N is a versatile duct/immersion temperature sensor designed for accurate temperature measurement in HVAC applications. It can be used in both air ducts and pipe applications when paired with a suitable thermowell. The sensor is housed in an IP65/NEMA 4X rated enclosure, ensuring durability and protection against dust and water ingress. Click here for the technical data PDF Type: 01DT-1NN Output signal: NTC10k Carel Probe length: 50 mm Probe diameter: 6 mm Parts Included: Mounting Clip: A-22D-A11, with screws and adhesive foil Electrical Data: Electrical Connection: Pluggable spring-loaded terminal block, max. 2.5 mm² Cable Entry: Cable gland with strain relief, ø6...8 mm Functional Data: Application: Suitable for air and water Output Signal: Passive temperature NTC10k Carel Measuring Data: Measured Values: Temperature Temperature Measuring Range: -50...150°C (-60...300°F) Measuring Current: <0.2 mA at 25°C (77°F) Accuracy Temperature Passive: ±0.26°C at 25°C (±0.48°F at 77°F) Time Constant τ (63%): - In water pipe with thermowell brass: Typical 7 s - With thermowell stainless steel: Typical 9 s - In air duct at 0 m/s: Typical 210 s - In air duct at 3 m/s: Typical 46 s Safety Data: Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) Power Source UL: Class 2 Supply Degree of Protection IEC/EN: IP65 Degree of Protection NEMA/UL: NEMA 4X EU Conformity: CE Marking Certification IEC/EN: IEC/EN 60730-1 Quality Standard: ISO 9001 UL Approval: cULus acc. to UL60730-1A/-2-9, CAN/CSA E60730-1/-2-9 Type of Action: Type 1 Rated Impulse Voltage Supply: 0.8 kV Pollution Degree: 3 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -35...50°C (-30...122°F) Fluid Temperature: -50...150°C (-60...300°F) Housing Surface Temperature: Max. 90°C (195°F) Materials: Cable Gland Plug Adapter: PA66, black Nut: PA6, black Housing Cover and Bottom: PC, orange Seal: NBR70, black Probe Material: V4A (1.4404) Optional Accessories: Mounting Plate S Housing: A-22D-A09 Connection Adapter Flex Conduit: M20x1.5, for cable gland 1x 6 mm, Multipack 10 pcs. A-22G-A01.1 Optional Accessories for Air: Mounting Flange for Sensor Probe: 6 mm, up to max. 120°C (248°F), Plastic A-22D-A03 6 mm, up to max. 260°C, Brass A-22D-A05 Recommended Accessories for Water: Thermowell Stainless Steel: 150 mm, G 1/2", SW27 A-22P-A10 100 mm, G 1/2", SW27 A-22P-A08 Thermowell Brass: 150 mm, R 1/2", SW22 A-22P-A22 100 mm, R 1/2", SW22 A-22P-A20 Syringe with Thermal Paste: A-22P-A44 Compression Fitting: Stainless steel, G 1/4" (external thread) for 6 mm, with cutting ring A-22P-A45 Cold Barrier: Plastic, L 50 mm, for thermowell A-22P-A.. A-22P-A51 Adapter for Siemens Thermowell: A-22P-A53 For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us.
£40.60£28.42
-

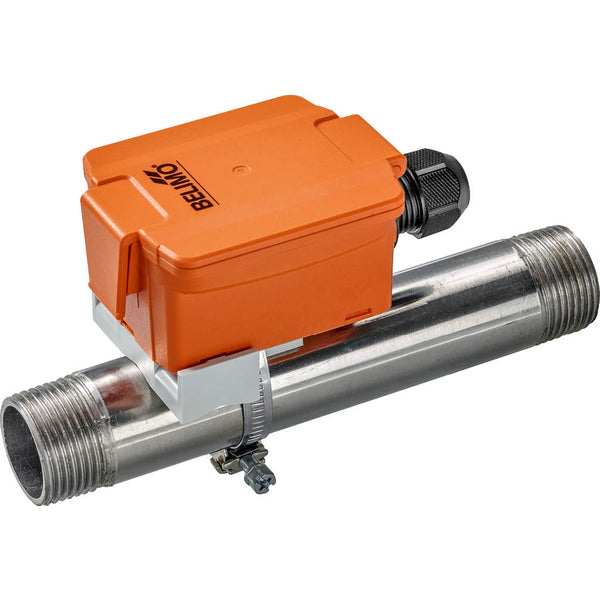

Belimo 01HT-1L Temperature Sensor
The Belimo 01HT-1L contact temperature sensor is designed for pipe applications. Its spring-loaded brass contact pin ensures precise and rapid temperature readings. This sensor is an essential component for heating, ventilation, and air-conditioning systems, providing accurate temperature measurements. Click here for the technical data PDF Parts Included Fixing Strap: Suitable for pipes ø20...110 mm (0.8...4.3") Type Options: Available in multiple types for various output signals: 01HT-1A: Pt100 01HT-1B: Pt1000 01HT-1C: Ni1000 01HT-1D: Ni1000TK5000 01HT-1F: NTC1k8 01HT-1L: NTC10k (10k2) 01HT-1Q: NTC20k Electrical Data Connection: Pluggable spring-loaded terminal block (max. 2.5 mm²) Cable Entry: Cable gland with strain relief (ø6...8 mm) Functional Data Temperature Specifications: Active: Time constant τ (63%) on water pipe with thermal contact fluid: Typical 16 s Passive: Measuring range: -35...90°C (-30...195°F) Accuracy: Pt..: Class B, ±0.3°C @ 0°C (±0.5°F @ 32°F) Ni..: ±0.4°C @ 0°C (±0.7°F @ 32°F) NTC1k8: ±0.5°C @ 25°C (±0.9°F @ 77°F) NTC..: ±0.2°C @ 25°C (±0.35°F @ 77°F) Safety Data Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) Power Source UL: Class 2 Supply Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 1 Enclosure UL: Enclosure Type 1 Certification IEC/EN: IEC/EN 60730-1 UL Approval: cULus acc. to UL60730-1A/-2-9, CAN/CSA E60730-1/-2-9 Pollution Degree: 2 Rated Impulse Voltage Supply: 0.8 kV Environmental Data Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -35...50°C (-30...122°F) Fluid Temperature: -35...90°C (-30...195°F) Housing Surface Temperature: Max. 90°C (195°F) Materials Cable Gland: PA6, black Housing: Cover: PC, orange Bottom: PC, orange Seal: NBR70, black UV Resistant Optional Accessories Fixing Strap for Larger Pipes: ø20...250 mm (0.8...9.8") A-22P-A49 Thermal Contact Fluid Syringe: A-22P-A44 Connection Adapter Flex Conduit: M20x1.5, for cable gland 1x 6 mm (Multipack 10 pcs.) A-22G-A01.1 Installation and Safety Notes Designed for stationary heating, ventilation, and air-conditioning systems. Unauthorised modifications are prohibited. Ensure all power is disconnected before installation. Installation should be carried out by authorised specialists only. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us on 01772 284 626.
£29.00£20.30
-

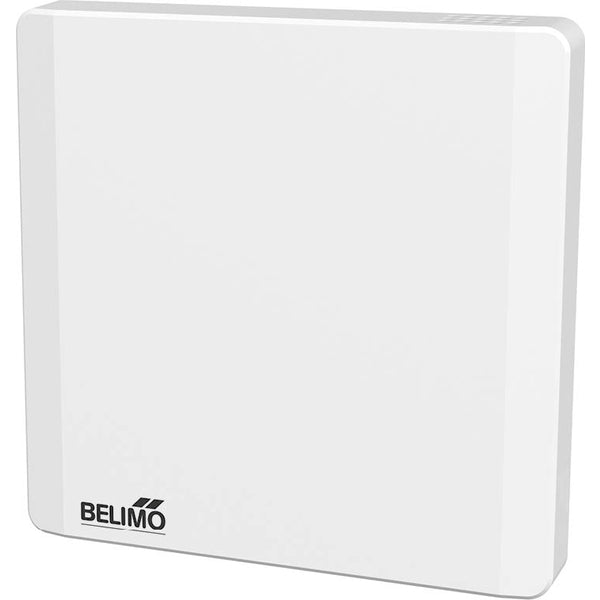

Belimo 01RT-1L-0 Room Sensor
Enhance your HVAC system with the Belimo 01RT-1L-0 room sensor, designed for precise temperature measurement and seamless integration with third-party controllers. Perfect for maintaining optimal climate control in residential, commercial, and industrial settings. The Belimo 01RT-1L-0 room sensor is engineered to measure room temperature accurately. Its design allows for easy installation and compatibility with various control systems. Whether for in-wall or on-wall wiring, this sensor ensures reliable performance and longevity. Included Parts: Screws Electrical Data: Electrical Connection: Spring loaded terminal 0.5...1.5 mm² Cable Entry: Wire openings at the backside (for in-wall wiring) and top-/bottom side (for on-wall wiring) Functional Data: Application: Air Output Signal: Passive temperature Pt1000 Ni1000 Ni1000TK5000 NTC1k8 NTC10k (10k2) NTC10k Pre (10k3) NTC20k Measuring Data: Measured Values: Temperature Measuring Range: 0...50°C [32...122°F] Measuring Current: Pt1000: <0.3 mA @ 0°C [32°F] Ni1000 (JCI): <5 mA @ 21°C [70°F] Ni1000TK5000: <0.3 mA @ 0°C [32°F] NTC1k8: <0.1 mA @ 25°C [77°F] NTC10k (10k2): <2 mA @ 25°C [77°F] NTC10k Pre (10k3): <2.7 mA @ 25°C [77°F] NTC20k: <0.5 mA @ 25°C [77°F] Accuracy Temperature Passive: Pt..: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F] Ni..: ±0.4°C @ 0°C [±0.7°F @ 32°F] NTC1k8: ±0.5°C @ 25°C [±0.9°F @ 77°F] NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F] Time Constant τ (63%) in the Room: Typical 360 s Safety Data: Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) Degree of Protection IEC/EN: IP30 EU Conformity: CE Marking Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-9 Quality Standard: ISO 9001 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: 0...50°C [32...122°F] Storage Temperature: -20...60°C [-4...140°F] Materials: Housing: PC, white, RAL 9003 Safety Notes: This device is designed for use in stationary heating, ventilation, and air-conditioning systems and must not be used outside the specified field of application. Unauthorized modifications are prohibited. The product must not be used in relation to any equipment that may threaten humans, animals, or assets in case of a failure. Ensure all power is disconnected before installation. Only authorized specialists may carry out the installation. The device contains electrical and electronic components and must not be disposed of as household refuse. Remarks: Due to self-heating with 2-wire passive sensors, the supply wire current affects measurement accuracy. Ensure the supply current does not exceed the specified measuring current values. When using lengthy connecting cables, the cable resistance must be considered. The lower the impedance of the sensor used, the greater the effect of line resistance on measurement accuracy, generating an offset. Why You Should Buy: The Belimo 01RT-1L-0 Room Sensor is essential for achieving accurate and reliable temperature measurement in your HVAC system. With its high compatibility, precise measurement capabilities, and robust design, it is a valuable addition to any climate control system. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us.
£18.30£12.81
-

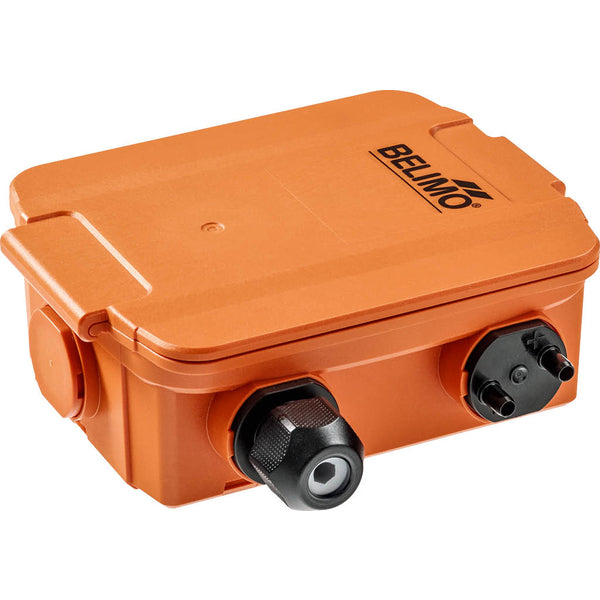

Belimo 22ADP-184 Differential Air Pressure Sensor
Enhance the performance of your HVAC systems with the Belimo 22ADP-184 Differential Pressure Sensor. Designed for accurate monitoring of air filters, fans, and V-belts, this sensor is an essential tool for maintaining optimal airflow and pressure in your HVAC applications. With selectable ranges and outputs, robust construction, and an array of features, the 22ADP-184 ensures precise measurements and reliable operation. Click here for the technical data PDF The Belimo 22ADP-184 Differential Pressure Sensor has eight selectable ranges and outputs, including 0-5 V, 0-10 V, and 4-20 mA. This versatile sensor is suitable for air and other non-flammable, non-aggressive gases. Ideal for use in HVAC systems, it offers accurate differential pressure monitoring, ensuring efficient system performance and maintenance. Parts Included - Mounting Plate: A-22D-A10 - Duct Connector Kit: PVC tube 2 m, 2x duct connector (plastic) for 22ADP-.. Features and Benefits - Multi-Range Measurement: Select from eight different pressure ranges to suit your application needs. - Versatile Outputs: Choose between 0-5 V, 0-10 V, and 4-20 mA output signals. - High Burst Pressure: Withstands up to 40 kPa burst pressure. - LCD Display (Optional): Models with LCD display for easy reading of measured values. - Auto-Zero Calibration (Optional): Maintenance-free automated zero-point calibration. - Robust Enclosure: IP65 / NEMA 4X rated for dust and water protection. - Long-term Stability: ±2.5% FSO over four years. Electrical Data - Nominal Voltage: AC/DC 24 V - Voltage Range: AC 19-29 V / DC 15-35 V - Power Consumption: AC 4.3 VA / DC 2.3 W - Connection: Pluggable spring-loaded terminal block, max. 2.5 mm² - Cable Entry: Cable gland with strain relief, ø6-8 mm Functional Data - Sensor Technology: Piezo measuring element - Application: Air - Selectable Ranges: 0-2500 Pa, 0-2000 Pa, 0-1500 Pa, 0-1000 Pa, 0-500 Pa, 0-250 Pa, 0-100 Pa, -100-100 Pa - Output Signals: 0-5 V, 0-10 V, 4-20 mA (selectable with switch) - Response Time: Adjustable to 0.8 s or 4.0 s - Display: LCD, 29x35 mm with backlight Mechanical Data - Manual Override: Zero-point calibration button - Enclosure: Polycarbonate (PC), UV resistant - Protection Class (IEC/EN): IP65 - Protection Class (NEMA/UL): NEMA 4X - Certification: CE Marking, IEC/EN 60730-1, IEC/EN 60730-2-6, UL Approval (cULus acc. to UL60730-1A/-2-6, CAN/CSA E60730-1) - Ambient Temperature: -10 to 50°C - Storage Temperature: -10 to 50°C - Humidity: Max. 95% RH, non-condensing - Weight: Detailed in data sheet Optional Accessories - Metal Duct Connectors: Various sizes from 40 mm to 500 mm - Connection Adapter: Flex conduit, M20x1.5 - Airflow Volume Probes: Multiple sizes for round and rectangular ducts - Bluetooth Dongle: For use with Belimo Duct Sensor Assistant App Installation and Service This sensor can be installed and configured using the Belimo Duct Sensor Assistant App via a Bluetooth dongle. Ensure all power is disconnected before installation, and follow the installation instructions to maintain compliance with safety standards. Notes - The auto-zero calibration feature eliminates output signal drift, enhancing accuracy and reducing maintenance. - Manual zero-point calibration should be performed at regular intervals as specified in the technical data sheet. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£162.00£113.40
-
Belimo 22DT-14N Temperature Sensor
The Belimo 22DT-14N A duct/immersion temperature sensor is an active sensor designed to measure temperature precisely in duct applications. It is also suitable for pipe applications when combined with a stainless steel or brass thermowell. This sensor has a robust IP65/NEMA 4X-rated enclosure and ensures reliable performance in various environmental conditions. Click here for the technical data PDF Parts Included - Mounting Clip: A-22D-A11 (with screws and adhesive foil) Electrical Data - Nominal Voltage: DC 24 V - Nominal Voltage Range: DC 13.5...26.4 V - Power Consumption: 0.5 W - Electrical Connection: Pluggable spring-loaded terminal block, max. 2.5 mm² - Cable Entry: Cable gland with strain relief, ø6...8 mm Functional Data - Sensor Technology: Based on Pt1000 1/3 DIN - Application: Air, Water - Multirange: 8 measuring ranges selectable - Current Output: 1x 4...20 mA, max. resistance 500 Ω - Measured Values: Temperature Measuring Data - Measuring Range Settings: - S0: -50...50°C - S1: -10...120°C - S2: 0...50°C - S3: 0...250°C - S4: -15...35°C - S5: 0...100°C - S6: -20...80°C - S7: 0...160°C - Accuracy Temperature: ±0.5°C @ 21°C - Long-term Stability: ±0.04°C p.a. @ 21°C - Time Constant (τ 63%) in Water Pipe: - Typical 7 s with thermowell brass - Typical 9 s with thermowell stainless steel - Time Constant (τ 63%) in Air Duct: - Typical 46 s @ 3 m/s - Typical 210 s @ 0 m/s Safety Data - Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) - Power Source UL: Class 2 Supply - Degree of Protection IEC/EN: IP65 - Degree of Protection NEMA/UL: NEMA 4X - Enclosure UL: Enclosure Type 4X - Certification IEC/EN: IEC/EN 60730-1 - UL Approval: cULus acc. to UL60730-1A/-2-9, CAN/CSA E60730-1/-2-9 - Type of Action: Type 1 - Rated Impulse Voltage Supply: 0.8 kV - Pollution Degree: 3 - Ambient Humidity: Max. 95% RH, non-condensing - Ambient Temperature: -35...50°C - Fluid Temperature: -50...160°C - Housing Surface Temperature: Max. 70°C Materials - Cable Gland: PA6, black - Housing: - Cover: PC, orange - Bottom: PC, orange - Seal: NBR70, black - UV resistant - Probe Material: V4A (1.4404) Accessories - Mounting Plate: S housing A-22D-A09 - Connection Adapter: Flex conduit, M20x1.5, for cable gland 1x 6 mm, Multipack 10 pcs. A-22G-A01.1 Optional Accessories (Air) - Mounting Flange for Sensor Probe: - 6 mm, up to max. 120°C, Plastic A-22D-A03 - 6 mm, up to max. 260°C, Brass A-22D-A05 Recommended Accessories (Water) - Thermowell Stainless Steel: - 50 mm, G 1/2", SW27 A-22P-A06 - 100 mm, G 1/2", SW27 A-22P-A08 - 150 mm, G 1/2", SW27 A-22P-A10 - 200 mm, G 1/2", SW27 A-22P-A12 - 300 mm, G 1/2", SW27 A-22P-A14 - 450 mm, G 1/2", SW27 A-22P-A16 - Thermowell Brass: - 50 mm, R 1/2", SW22 A-22P-A18 - 100 mm, R 1/2", SW22 A-22P-A20 - 150 mm, R 1/2", SW22 A-22P-A22 - 200 mm, R 1/2", SW22 A-22P-A24 - 300 mm, R 1/2", SW22 A-22P-A26 - 450 mm, R 1/2", SW22 A-22P-A28 - Compression Fitting: Stainless steel, G 1/4" (external thread) for 6 mm, with cutting ring A-22P-A45 - Cold Barrier: Plastic, L 50 mm, for thermowell A-22P-A.. A-22P-A51 - Syringe with Thermal Contact Fluid: A-22P-A44 Notes - Accuracy and Stability: Ensure accurate and stable performance with ±0.5°C temperature accuracy and ±0.04°C long-term stability. - Installation Tips: For optimal performance, avoid drafts and power surges during installation. Utilize two GND-wires to avoid measurement deviations. - Environmental Compatibility: Rated for use in harsh environments with an IP65/NEMA 4X enclosure. For more information and to explore our range of Belimo products, visit our website at http://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626. --- Would you like a list of keywords for digital marketing, guiding content creation, PPC campaigns, and social media hashtags to enhance product visibility? If yes, I can provide both long and short-tail keywords and relevant phrases.
£89.40£62.58
-

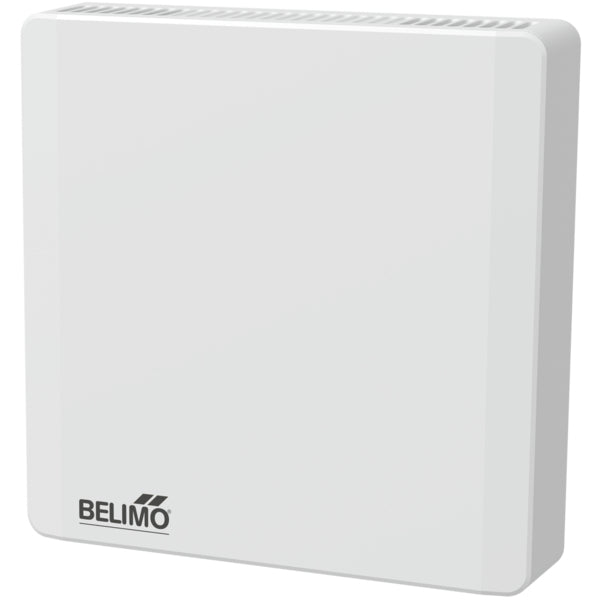

Belimo 22RTH-19-1 Room Sensor (CO₂ / Humidity / Temperature)
Introducing the Belimo 22RTH-19-1 Room Sensor, designed to measure indoor temperature, humidity, and CO₂ levels precisely. These sensors are perfect for integration with third-party controllers and feature MP-Bus communication and a 0...10 V output. Easily parametrised via NFC using the Belimo Assistant App, these sensors are a reliable addition to any HVAC system. Click here for the technical data PDF Electrical Data - Nominal Voltage: AC/DC 24 V - Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V - Power Consumption (AC): 1 VA - Power Consumption (DC): 0.5 W - Electrical Connection: Spring loaded terminal 0.25...1.5 mm², 23-15 AWG, copper conductors only - Cable Type (USA and Canada): CL2 or higher - Cable Entry: Back, Top, Bottom Functional Data - Application: Air - Voltage Output: - 22RT-19-1: 1 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - 22RTH-19-1: 2 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - 22RTM-19-1: 3 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - Output Signal Active Note: Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC - Display: LED, used for CO₂ Traffic Light Function (TLF). Parametrisable and deactivatable via Belimo Assistant App. Measuring Data - Measured Values: - CO₂ - Relative Humidity - Dew Point - Temperature Specification CO₂ - Sensing Element Technology: Non-dispersive infrared (NDIR) dual channel - Measuring Range: Default setting: 0...2000 ppm - Accuracy: ±(50 ppm + 2% of measured value) - Long-Term Stability: ±20 ppm p.a. Specification Temperature - Measuring Range: 0...50°C [32...122°F] (default setting) - Accuracy Temperature Active: ±0.3°C @ 25°C [±0.5°F @ 77°F] - Long Term Stability: ±0.03°C p.a. @ 25°C [±0.05°F p.a. @ 77°F] Specification Humidity - Measuring Range: 0...100% RH (default setting) - Measuring Range Dew Point: -50...50°C [-60...120°F] (default setting) - Accuracy: ±2% between 0...90% RH @ 25°C - Long Term Stability: ±0.25% RH p.a. @ 25°C @ 50% RH Safety Data - Protection Class (IEC/EN): III, Safety Extra-Low Voltage (SELV) - Power Source (UL): Class 2 Supply - Degree of Protection (IEC/EN): IP30 - EU Conformity: CE Marking - Quality Standard: ISO 9001 - UL Approval: cULus according to UL60730-1, CAN/CSA E60730-1 - Type of Action: Type 1 - Rated Impulse Voltage Supply: 0.5 kV - Pollution Degree: 2 - Ambient Humidity Max: 95% RH, non-condensing - Ambient Temperature: 0...50°C [32...122°F] - Storage Temperature: -40...70°C [-40...160°F] Materials - Housing: PC, white, RAL 9003 - UL94V-0 Parts Included - Screws Accessories - Tools Description: - Belimo Assistant App: Smartphone app for easy commissioning, parametrising, and maintenance - Converter Bluetooth / NFC: ZIP-BT-NFC Notes - General Remarks: The sensor's accuracy can be influenced by the thermal characteristics of the wall on which it is mounted. It is designed for use in stationary heating, ventilation, and air-conditioning systems. - Application Notice for Humidity Sensors: The humidity sensor is highly sensitive and should not be exposed to aggressive substances like chlorine or ammonia, which can affect accuracy. Why You Should Buy Choosing Belimo's 22RT-19-1 series ensures you are getting top-notch accuracy and reliability for your HVAC systems. With advanced features like dual channel CO₂ sensing and NFC parametrisation, these sensors are designed for optimal performance and ease of use. Their robust design and adherence to strict safety standards make them ideal for commercial applications, including hospitals and office buildings. Enhance your indoor air quality monitoring with Belimo and ensure a comfortable, safe environment for everyone. For more information and to explore our range of Belimo products, visit our website at ecospares.co.uk/collections/belimo. If you need any assistance, please contact us on 01772 284 626.
£110.00£77.00
-
Belimo 22RTM-19-1 Room Sensor (CO₂ / Humidity / Temperature)
Introducing the Belimo 22RTM-19-1 Room Sensor, designed to precisely measure indoor temperature, humidity, and CO₂ levels. These sensors are perfect for integrating third-party controllers and feature MP-Bus communication and a 0...10 V output. Easily parametrised via NFC using the Belimo Assistant App, these sensors are a reliable addition to any HVAC system. Click here for the technical data PDF Electrical Data (See image of tech. sheet) - Nominal Voltage: AC/DC 24 V - Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V - Power Consumption (AC): 1 VA - Power Consumption (DC): 0.5 W - Electrical Connection: Spring loaded terminal 0.25...1.5 mm², 23-15 AWG, copper conductors only - Cable Type (USA and Canada): CL2 or higher - Cable Entry: Back, Top, Bottom Functional Data (See image of tech. sheet) - Application: Air - Voltage Output: - 22RT-19-1: 1 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - 22RTH-19-1: 2 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - 22RTM-19-1: 3 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ - Output Signal Active Note: Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC - Display: LED, used for CO₂ Traffic Light Function (TLF). Parametrisable and deactivatable via Belimo Assistant App. Measuring Data - Measured Values: - CO₂ - Relative Humidity - Dew Point - Temperature Specification CO₂ - Sensing Element Technology: Non-dispersive infrared (NDIR) dual channel - Measuring Range: Default setting: 0...2000 ppm - Accuracy: ±(50 ppm + 2% of measured value) - Long-Term Stability: ±20 ppm p.a. Specification Temperature - (See image of tech. sheet) - Measuring Range: 0...50°C [32...122°F] (default setting) - Accuracy Temperature Active: ±0.3°C @ 25°C [±0.5°F @ 77°F] - Long Term Stability: ±0.03°C p.a. @ 25°C [±0.05°F p.a. @ 77°F] Specification Humidity - (See image of tech. sheet) - Measuring Range: 0...100% RH (default setting) - Measuring Range Dew Point: -50...50°C [-60...120°F] (default setting) - Accuracy: ±2% between 0...90% RH @ 25°C - Long Term Stability: ±0.25% RH p.a. @ 25°C @ 50% RH Safety Data - Protection Class (IEC/EN): III, Safety Extra-Low Voltage (SELV) - Power Source (UL): Class 2 Supply - Degree of Protection (IEC/EN): IP30 - EU Conformity: CE Marking - Quality Standard: ISO 9001 - UL Approval: cULus according to UL60730-1, CAN/CSA E60730-1 - Type of Action: Type 1 - Rated Impulse Voltage Supply: 0.5 kV - Pollution Degree: 2 - Ambient Humidity Max: 95% RH, non-condensing - Ambient Temperature: 0...50°C [32...122°F] - Storage Temperature: -40...70°C [-40...160°F] Materials - Housing: PC, white, RAL 9003 - UL94V-0 Parts Included - Screws Accessories - Tools Description: - Belimo Assistant App: Smartphone app for easy commissioning, parametrising, and maintenance - Converter Bluetooth / NFC: ZIP-BT-NFC Notes - General Remarks: The sensor's accuracy can be influenced by the thermal characteristics of the wall on which it is mounted. It is designed for stationary heating, ventilation, and air-conditioning systems. - Application Notice for Humidity Sensors: The humidity sensor is highly sensitive and should not be exposed to aggressive substances like chlorine or ammonia, which can affect accuracy. Why You Should Buy Choosing Belimo's 22RM-19-1 adherence to strict safety standards makes them ideal for commercial applications, including hospitals and office buildings. Enhance your indoor air quality monitoring with Belimo and ensure a comfortable, safe environment for everyone. For more information and to explore our range of Belimo products, visit ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£227.00£158.90
-

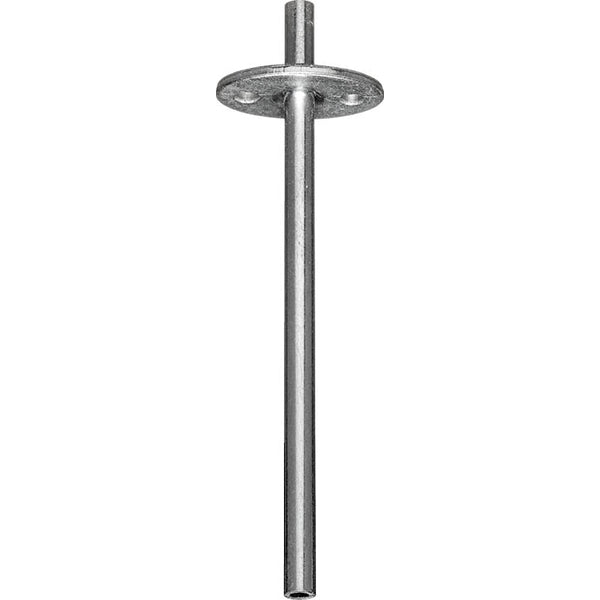

Belimo A-22AP-A04 Duct connector
Belimo Duct connector, Metal, L 100 mm, Tube connection 5 mm
£9.40£6.58
-

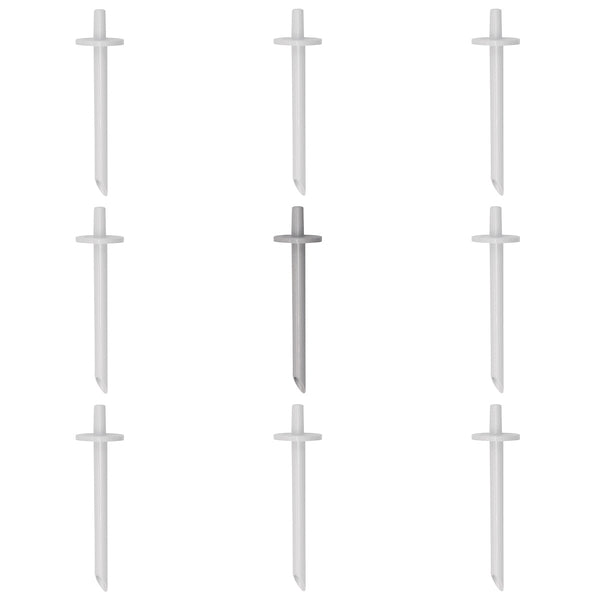

Belimo A-22AP-A09.1 duct connectors (90 pcs Multipack)
Duct connector, L 80 mm, for 01APS-.Multipack 90 pcs. Belimo as a global market leader develops innovative solutions forthe controlling of heating, ventilation and air-conditioning systems.Damper actuators, control valves, sensors and meters represent ourcore business. Always focusing on customer value, we deliver more than only products.We offer you the complete product range for the regulation and controlof HVAC systems from a single source. At the same time, we relyon tested Swiss quality with a five-year warranty. Our worldwiderepresentatives in over 80 countries guarantee short delivery timesand comprehensive support through the entire product life. Belimodoes indeed include everything. The “small” Belimo devices have a big impact on comfort, energyefficiency, safety, installation and maintenance. In short: Small devices, big impact
£64.80£45.36
-

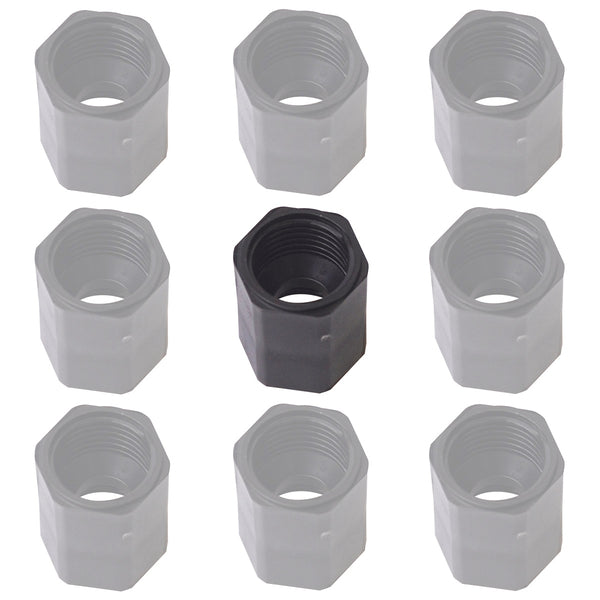

Belimo A-22G-A01.1 Connection Adapters (10pcs multipack)
Belim Connection adapter for flex conduit, M20x1.5, for cable gland 1x 6 mmMultipack 10 pcs.
£33.00£23.10
-

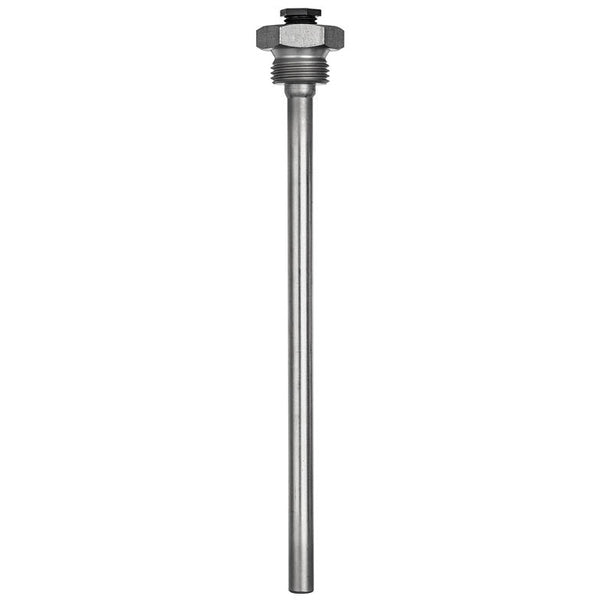

Belimo A-22P-A06 Thermowell (G 1/2 inch)
Introducing the high-quality Stainless Steel Thermowell, designed for seamless integration with immersion and cable temperature sensors, including models 01DT.., 22DT.., 01CT.., and 22CT.. This thermowell offers superior durability and precision, making it ideal for various applications in various industrial environments. Click here for the technical data PDF Parts Included - Stainless Steel Thermowell - Integrated Compression Fitting - G 1/2" External Thread Crafted from premium stainless steel, this thermowell ensures long-lasting performance and reliability. Its G 1/2" external thread and integrated compression fitting simplify installation, ensuring a secure and leak-proof connection. Material Composition: - Probe Material: Stainless Steel - Turned Part: V4A (1.4404) - Pipe: V4A (1.4571) - Pressure Screw: Polyamide (PA66/GF25) Application: Suitable for water and water-glycol mixture applications. - Pressure Rating: PN 40 - Temperature Range: Capable of handling fluid temperatures up to a maximum of 200°C. - Quality Standard: ISO 9001 certified. | Type | Length | Diameter | Max. Flow | Weight | | A-22P-A06 | 50 mm | 9 mm | 29.5 m/s | 0.065 kg | | A-22P-A08 | 100 mm | 9 mm | 13.6 m/s | 0.075 kg | | A-22P-A10 | 150 mm | 9 mm | 8.7 m/s | 0.085 kg | | A-22P-A12 | 200 mm | 9 mm | 5.4 m/s | 0.095 kg | | A-22P-A29 | 250 mm | 9 mm | 4.5 m/s | 0.10 kg | | A-22P-A14 | 300 mm | 9 mm | 2.4 m/s | 0.11 kg | | A-22P-A16 | 450 mm | 9 mm | 1.0 m/s | 0.14 kg | Why You Should Buy This Thermowell Durability: Constructed from high-grade stainless steel, this thermowell offers exceptional resistance to corrosion and wear, ensuring long-term reliability. Easy Installation: The G 1/2" external thread and integrated compression fitting make installation straightforward and secure, reducing downtime and maintenance efforts. Versatility: Designed for use with a variety of immersion and cable temperature sensors, making it a versatile choice for different industrial applications. High-Performance: With a pressure rating of PN 40 and a fluid temperature capacity of up to 200°C, this thermowell meets the demands of rigorous industrial environments. Compliance: Meets ISO 9001 standards, ensuring high quality and performance. Accessories - Optional temperature sensors compatible with models 01DT.., 22DT.., 01CT.., 22CT.. Notes - Ensure compatibility with your existing sensors and systems before installation. - For optimal performance, regular maintenance and checks are recommended. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626
£25.80£18.06
-
Belimo A-22P-A08 Thermowell (G 1/2 inch)
Introducing the high-quality Stainless Steel Thermowell, designed for seamless integration with immersion and cable temperature sensors, including models 01DT.., 22DT.., 01CT.., and 22CT.. This thermowell offers superior durability and precision, making it ideal for various applications in various industrial environments. Click here for the technical data PDF Parts Included - Stainless Steel Thermowell - Integrated Compression Fitting - G 1/2" External Thread Crafted from premium stainless steel, this thermowell ensures long-lasting performance and reliability. Its G 1/2" external thread and integrated compression fitting simplify installation, ensuring a secure and leak-proof connection. Material Composition: - Probe Material: Stainless Steel - Turned Part: V4A (1.4404) - Pipe: V4A (1.4571) - Pressure Screw: Polyamide (PA66/GF25) Application: Suitable for water and water-glycol mixture applications. - Pressure Rating: PN 40 - Temperature Range: Capable of handling fluid temperatures up to a maximum of 200°C. - Quality Standard: ISO 9001 certified. | Type | Length | Diameter | Max. Flow | Weight | | A-22P-A06 | 50 mm | 9 mm | 29.5 m/s | 0.065 kg | | A-22P-A08 | 100 mm | 9 mm | 13.6 m/s | 0.075 kg | | A-22P-A10 | 150 mm | 9 mm | 8.7 m/s | 0.085 kg | | A-22P-A12 | 200 mm | 9 mm | 5.4 m/s | 0.095 kg | | A-22P-A29 | 250 mm | 9 mm | 4.5 m/s | 0.10 kg | | A-22P-A14 | 300 mm | 9 mm | 2.4 m/s | 0.11 kg | | A-22P-A16 | 450 mm | 9 mm | 1.0 m/s | 0.14 kg | Why You Should Buy This Thermowell Durability: Constructed from high-grade stainless steel, this thermowell offers exceptional resistance to corrosion and wear, ensuring long-term reliability. Easy Installation: The G 1/2" external thread and integrated compression fitting make installation straightforward and secure, reducing downtime and maintenance efforts. Versatility: Designed for use with a variety of immersion and cable temperature sensors, making it a versatile choice for different industrial applications. High-Performance: With a pressure rating of PN 40 and a fluid temperature capacity of up to 200°C, this thermowell meets the demands of rigorous industrial environments. Compliance: Meets ISO 9001 standards, ensuring high quality and performance. Accessories - Optional temperature sensors compatible with models 01DT.., 22DT.., 01CT.., 22CT.. Notes - Ensure compatibility with your existing sensors and systems before installation. - For optimal performance, regular maintenance and checks are recommended. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626
£28.50£19.95
-
Belimo A-22P-A10 Thermowell (G 1/2 inch)
Introducing the high-quality Stainless Steel Thermowell, designed for seamless integration with immersion and cable temperature sensors, including models 01DT.., 22DT.., 01CT.., and 22CT.. This thermowell offers superior durability and precision, making it ideal for various applications in various industrial environments. Click here for the technical data PDF Parts Included - Stainless Steel Thermowell - Integrated Compression Fitting - G 1/2" External Thread Crafted from premium stainless steel, this thermowell ensures long-lasting performance and reliability. Its G 1/2" external thread and integrated compression fitting simplify installation, ensuring a secure and leak-proof connection. Material Composition: - Probe Material: Stainless Steel - Turned Part: V4A (1.4404) - Pipe: V4A (1.4571) - Pressure Screw: Polyamide (PA66/GF25) Application: Suitable for water and water-glycol mixture applications. - Pressure Rating: PN 40 - Temperature Range: Capable of handling fluid temperatures up to a maximum of 200°C. - Quality Standard: ISO 9001 certified. | Type | Length | Diameter | Max. Flow | Weight | | A-22P-A06 | 50 mm | 9 mm | 29.5 m/s | 0.065 kg | | A-22P-A08 | 100 mm | 9 mm | 13.6 m/s | 0.075 kg | | A-22P-A10 | 150 mm | 9 mm | 8.7 m/s | 0.085 kg | | A-22P-A12 | 200 mm | 9 mm | 5.4 m/s | 0.095 kg | | A-22P-A29 | 250 mm | 9 mm | 4.5 m/s | 0.10 kg | | A-22P-A14 | 300 mm | 9 mm | 2.4 m/s | 0.11 kg | | A-22P-A16 | 450 mm | 9 mm | 1.0 m/s | 0.14 kg | Why You Should Buy This Thermowell Durability: Constructed from high-grade stainless steel, this thermowell offers exceptional resistance to corrosion and wear, ensuring long-term reliability. Easy Installation: The G 1/2" external thread and integrated compression fitting make installation straightforward and secure, reducing downtime and maintenance efforts. Versatility: Designed for use with a variety of immersion and cable temperature sensors, making it a versatile choice for different industrial applications. High-Performance: With a pressure rating of PN 40 and a fluid temperature capacity of up to 200°C, this thermowell meets the demands of rigorous industrial environments. Compliance: Meets ISO 9001 standards, ensuring high quality and performance. Accessories - Optional temperature sensors compatible with models 01DT.., 22DT.., 01CT.., 22CT.. Notes - Ensure compatibility with your existing sensors and systems before installation. - For optimal performance, regular maintenance and checks are recommended. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626
£31.00£21.70
-

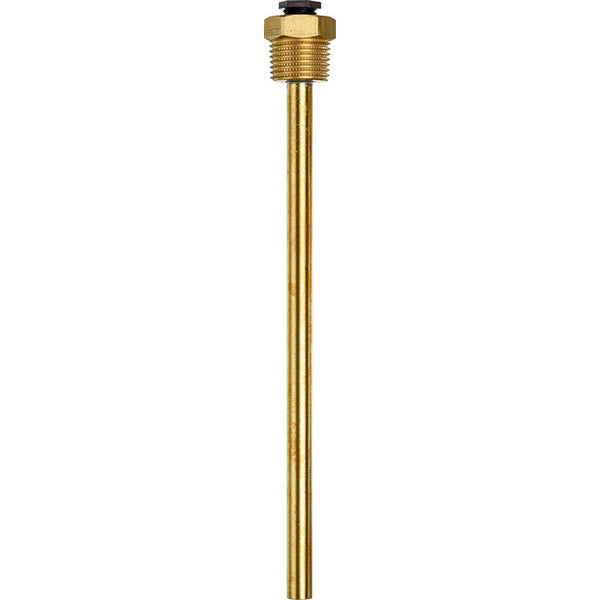

Belimo A-22P-A20 Thermowell Pocket
This brass Belimo Thermowell pocket allows for a temperature probe to fit within., Click here for the technical data PDF Length:100 mm diameter: 9mm R 1/2", SW22 - Functional Data: - Application: Water, Water-glycol mixture - PN: 16 - Safety Data: - Quality Standard: ISO 9001 - Fluid Temperature: Up to max. 130°C - Materials: - Probe Material: Brass - Thermowell Material: - Turned part: CW614N (2.0401) - Pipe: CW508L (2.0321) - Pressure Screw: Polyamide (PA66/GF25) Product Features: - Brass construction ensures durability and reliability. - R 1/2" external thread and integrated compression fitting for quick and secure installation. - Suitable for a wide range of sensors and applications, particularly in water and water-glycol mixtures. - High flow velocity capabilities to meet diverse operational needs. - Compliance with ISO 9001 quality standards, ensuring top-notch performance. Included Parts: - Brass thermowell in specified lengths and diameters. - Integrated compression fitting for seamless sensor installation. Accessories: - Compatible with various immersion and cable sensors: 01DT.., 22DT.., 01CT.., 22CT... Notes: - Ensure compatibility with your system specifications before installation. - For maximum efficiency, consult the detailed technical data sheet. Why Choose Belimo A-22P-A22: - Quality Assurance: Certified to ISO 9001 standards. - Versatility: Applicable for various fluids and mixtures, including water and water-glycol. - Durability: Made from high-grade brass, ensuring long-term reliability and performance. - Easy Installation: Features an external thread and integrated fitting for quick setup. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£13.30£9.31
-
Belimo A-22P-A22 Brass Thermowell Pocket
Discover the premium quality and exceptional performance of the Belimo A-22P-A22 Brass Thermowell. Designed for ease of installation, this thermowell features an R 1/2" external thread and integrated compression fitting, making it ideal for immersion and cable sensors such as 01DT.., 22DT.., 01CT.., 22CT... Click here for the technical data PDF Technical Specifications: - Type Overview: - Thermowell Lengths: 150 mm - Thermowell Diameter: 9 mm - Max. Flow Velocity: 0.7 m/s to 26.6 m/s - Weight: 0.080 kg - Functional Data: - Application: Water, Water-glycol mixture - PN: 16 - Safety Data: - Quality Standard: ISO 9001 - Fluid Temperature: Up to max. 130°C - Materials: - Probe Material: Brass - Thermowell Material: - Turned part: CW614N (2.0401) - Pipe: CW508L (2.0321) - Pressure Screw: Polyamide (PA66/GF25) Product Features: - Brass construction ensures durability and reliability. - R 1/2" external thread and integrated compression fitting for quick and secure installation. - Suitable for a wide range of sensors and applications, particularly in water and water-glycol mixtures. - High flow velocity capabilities to meet diverse operational needs. - Compliance with ISO 9001 quality standards, ensuring top-notch performance. Included Parts: - Brass thermowell in specified lengths and diameters. - Integrated compression fitting for seamless sensor installation. Accessories: - Compatible with various immersion and cable sensors: 01DT.., 22DT.., 01CT.., 22CT... Notes: - Ensure compatibility with your system specifications before installation. - For maximum efficiency, consult the detailed technical data sheet. Why Choose Belimo A-22P-A22: - Quality Assurance: Certified to ISO 9001 standards. - Versatility: Applicable for various fluids and mixtures, including water and water-glycol. - Durability: Made from high-grade brass, ensuring long-term reliability and performance. - Easy Installation: Features an external thread and integrated fitting for quick setup. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£14.80£10.36
-

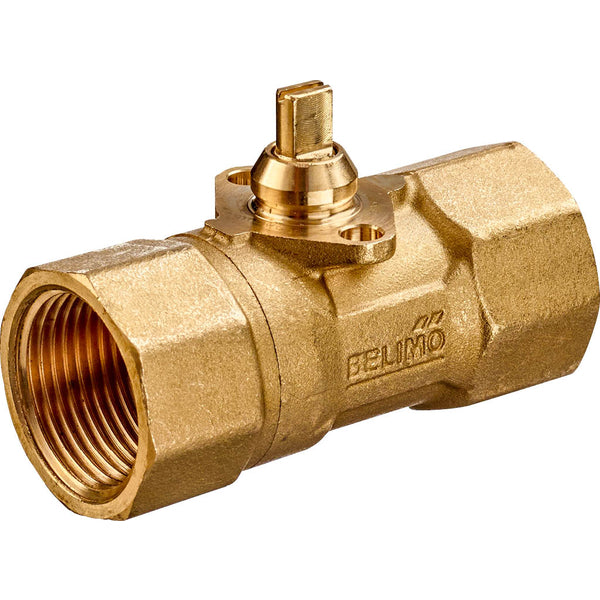

Belimo C215Q-F Zone valve (2-way)
Zone valve, 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, Kvs 4.8 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C) Click here for the technical data PDF The Belimo C215Q-F 2-way zone valve is expertly designed for closed cold and warm water systems. Ideal for shut-off functions and modulating controls on the water side of air-handling units and heating systems, this series offers reliable performance and ease of use. These valves ensure efficient and precise fluid flow control with snap-assembly actuators and various technical specifications. Functional Data Fluid Compatibility: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature Range: 2...100°C (with actuator 2...90°C) Close-off Pressure (∆ps): 520 kPa Differential Pressure (Δpmax): 280 kPa Flow Characteristic: Equal percentage (VDI/VDE 2173), optimized in the opening range Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Angle of Rotation: 90° (Operating range 15...90°) Installation Orientation: Upright to horizontal Mechanical Data Valve Body Material: Brass Closing Element: Chrome-plated brass Spindle: Brass Spindle Seal: EPDM O-ring Seat: PTFE, O-ring EPDM Pipe Connection: Internal thread according to ISO 7-1 Snap-Assembly Actuator: Tool-free snap assembly for quick and easy installation. Flow Setting: Adjustable angle of rotation in 2.5° increments for precise flow control. Maintenance-Free: Both ball valves and rotary actuators require no maintenance. Flow Direction: Bidirectional flow capability. Accessories Spindle Extension (CQ ZCQ-E) Pipe Connectors: DN 15 Rp 1/2" (ZR2315) DN 20 Rp 3/4" (ZR2320) DN 25 Rp 1" (ZR2325) Installation Notes Permissible Orientation: Must not be installed in a hanging position. Water Quality Requirements: Adherence to VDI 2035 for long-term functionality. Servicing: Isolate the rotary actuator from the power supply before any service work. Ensure all components are cooled down, and system pressure is reduced to ambient level. Certification and Compliance Safety: Designed for stationary heating, ventilation, and air-conditioning systems. EMC and Certification: Conforms to relevant standards, ensuring safe and reliable operation. Belimo's C215Q-F zone valve offers superior control and reliability for your HVAC systems. Focusing on ease of installation, maintenance-free operation, and precision control, these valves are the ideal choice for professional tradesmen and engineering companies. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us on 01772 284 626.
£35.00£24.50
-
Belimo C215Q-J Zone valve (2-way)
Zone valve, 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, Kvs 4.8 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C) Click here for the technical data PDF The Belimo C215Q-J 2-way zone valve are expertly designed for closed cold and warm water systems. Ideal for shut-off functions and modulating controls on the water side of air-handling units and heating systems, this series offers reliable performance and ease of use. With snap-assembly actuators and a range of technical specifications, these valves ensure efficient and precise fluid flow control. Functional Data Fluid Compatibility: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature Range: 2...100°C (with actuator 2...90°C) Close-off Pressure (∆ps): 520 kPa Differential Pressure (Δpmax): 280 kPa Flow Characteristic: Equal percentage (VDI/VDE 2173), optimized in the opening range Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Angle of Rotation: 90° (Operating range 15...90°) Installation Orientation: Upright to horizontal Mechanical Data Valve Body Material: Brass Closing Element: Chrome-plated brass Spindle: Brass Spindle Seal: EPDM O-ring Seat: PTFE, O-ring EPDM Pipe Connection: Internal thread according to ISO 7-1 Snap-Assembly Actuator: Tool-free snap assembly for quick and easy installation. Flow Setting: Adjustable angle of rotation in 2.5° increments for precise flow control. Maintenance-Free: Both ball valves and rotary actuators require no maintenance. Flow Direction: Bidirectional flow capability. Accessories Spindle Extension (CQ ZCQ-E) Pipe Connectors: DN 15 Rp 1/2" (ZR2315) DN 20 Rp 3/4" (ZR2320) DN 25 Rp 1" (ZR2325) Installation Notes Permissible Orientation: Must not be installed in a hanging position. Water Quality Requirements: Adherence to VDI 2035 for long-term functionality. Servicing: Isolate the rotary actuator from the power supply before any service work. Ensure all components are cooled down, and system pressure is reduced to ambient level. Certification and Compliance Safety: Designed for stationary heating, ventilation, and air-conditioning systems. EMC and Certification: Conforms to relevant standards, ensuring safe and reliable operation. Belimo's C215Q-J zone valve offers superior control and reliability for your HVAC systems. With a focus on ease of installation, maintenance-free operation, and precision control, these valves are the ideal choice for professional tradesmen and engineering companies. For more information and to explore our range of Belimo products, visit our website at (https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£35.00£24.50
-
Belimo C215QP-D two-way zone valve
PI Zone Valve (PIQCV), 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, V'nom 420 l/h, Fluid temperature -20...120°C [-4...248°F] (with actuator 2...90°C) Click here for the technical data PDF Belimo PI Zone Valve, 2Way, Internal Thread The Belimo PI Zone Valve is an advanced solution designed for modulating control of airhandling and heating systems on the water side, ideal for use in closed cold and warm water systems. Its snapassembly actuator ensures ease of installation and reliable operation. Explore our comprehensive range here on ECO SPARES Product Overview Type Overview: C215QPB: DN 15, Rp 1/2, Nominal Flow 0.058 l/s, 210 l/h, 0.21 m³/h C215QPD: DN 15, Rp 1/2, Nominal Flow 0.117 l/s, 420 l/h, 0.42 m³/h C215QPTB: DN 15, Rp 1/2, Nominal Flow 0.058 l/s, 210 l/h, 0.21 m³/h C215QPTD: DN 15, Rp 1/2, Nominal Flow 0.117 l/s, 420 l/h, 0.42 m³/h C220QPF: DN 20, Rp 3/4, Nominal Flow 0.272 l/s, 980 l/h, 0.98 m³/h C220QPTF: DN 20, Rp 3/4, Nominal Flow 0.272 l/s, 980 l/h, 0.98 m³/h C225QPTG: DN 25, Rp 1, Nominal Flow 0.583 l/s, 2100 l/h, 2.1 m³/h PT = Version with measuring ports (P/T ports) Technical Specifications Functional Data Fluid: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature: 20...120°C [4.0...248°F], with actuator 2...90°C Differential Pressure: 16...350 kPa Closeoff Pressure: ∆ps 1400 kPa Flow Characteristic: Equal percentage (VDI/VDE 2173), optimized in the opening range Pressure Stability: ±5% with a pressure value of 35...350 kPa, ±10% with a pressure value of 16...35 kPa Leakage Rate: Airbubble tight, leakage rate A (EN 122661) Angle of Rotation: 90°, Operating range 15...90° Pipe Connection: Internal thread according to ISO 71 Installation Orientation: Upright to horizontal (in relation to the stem) Servicing: Maintenance free Materials Valve Body: Brass Closing Element: Stainless steel Spindle: Stainless steel Spindle Seal: EPDM Oring Seat: PTFE, Oring EPDM Diaphragm: EPDM Safety Notes Designed for use in stationary heating, ventilation, and air conditioning systems. Only authorised specialists may carry out installation. Must not be used outside the specified field of application. Disposal must follow local regulations. Product Features Operating Mode: Adjusted by a rotary actuator, controlled by a commercially available modulating or 3 point control system. Flow Characteristic: Equal percentage flow control ensured by the special design of the ball. Constant Flow Volume: Achieved with a differential pressure of 16…350 kPa. Measuring Ports (P/T Ports): Available in C2..QPT.. type valves for differential pressure measurement and optimization. Installation Notes Permissible installation orientation is upright to horizontal, not hanging. Installation in the return is recommended. Adhere to VDI 2035 water quality requirements. Keep valves free from particle debris; installation of a suitable strainer is recommended. Ensure flow direction as specified by the arrow on the housing. Accessories Spindle Extension: CQ ZCQE Flow Limiter: PIQCV ZCQFL Pipe Connector: DN 15 Rp 1/2" ZR2315 DN 20 Rp 3/4" ZR2320 DN 25 Rp 1" ZR2325 For more details and to view our entire range, please visit (http://www.ecospares.co.uk). If you need assistance, feel free to get in touch with us.
£139.00£97.30
-

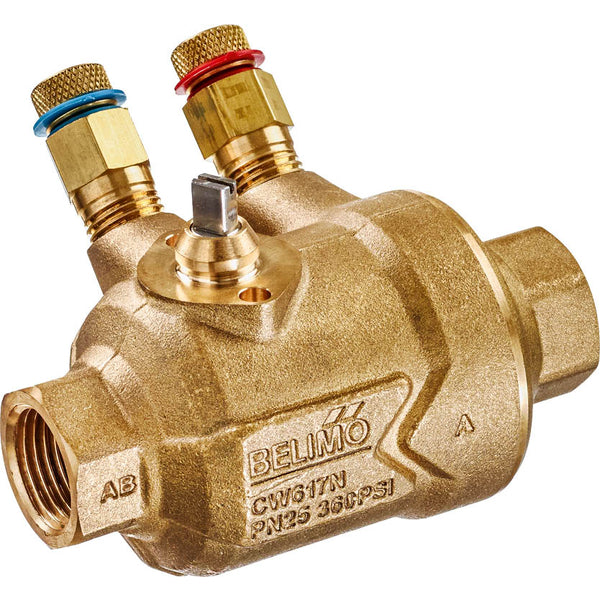

Belimo C215QPT-B (2-way) PI Zone Valve
The Belimo PI Zone Valve, 2-way with internal thread, is engineered for closed cold and warm water systems. It delivers precise control for air handling and heating systems. Ideal for tradespeople and engineering companies, this valve ensures optimal performance and reliability. - Functional Data: - Fluid: Cold and warm water with glycol up to max. 50% vol. - Fluid Temperature: -20...120°C [-4.0...248°F] - Differential Pressure: 16...350 kPa - Close-off Pressure: ∆ps 1400 kPa - Flow Characteristic: Equal percentage (VDI/VDE 2173), optimized in the opening range - Pressure Stability: ±5% (35...350 kPa), ±10% (16...35 kPa) - Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) - Angle of Rotation: 90° (Operating range 15...90°) - Pipe Connection: Internal thread according to ISO 7-1 - Installation Orientation: Upright to horizontal (in relation to the stem) - Servicing: Maintenance-free - Material Composition: - Valve Body: Brass - Closing Element: Stainless steel - Spindle: Stainless steel - Spindle Seal: EPDM O-ring - Seat: PTFE, O-ring EPDM - Diaphragm: EPDM Operating Mode: The ball valve is adjusted by a rotary actuator, controlled by a modulating or 3-point control system. Flow Characteristic: Equal percentage flow control is ensured by the special design of the ball. Constant Flow Volume: Maintains a constant flow volume with a differential pressure of 16…350 kPa. Measuring Ports (P/T Ports): These are included in C2..QPT-.. types for easy pressure differential measurement. Installation Orientation: Permissible upright to horizontal installation. Not suitable for hanging installation. Servicing: Maintenance-free ball valves and rotary actuators. Before any service work, ensure the rotary actuator is isolated from the power supply. - Mechanical Accessories: - Spindle Extension: CQ ZCQ-E - Flow Limiter: PIQCV ZCQ-FL - Pipe Connector: Available for DN 15, DN 20, and DN 25 with respective internal threads. Why You Should Buy: - Precision Control: Optimized for modulating control in HVAC systems. - Durability: Made with high-quality materials like brass and stainless steel for long-lasting performance. - Easy Maintenance: Designed to be maintenance-free, reducing downtime and service costs. - Versatility: Suitable for a wide range of applications in heating and cooling systems. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£169.00£118.30
-
Belimo C220Q-K Zone valve (2-way)
The C220Q-K Zone valve is 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, Kvs 4.8 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C) Click here for the technical data PDF The Belimo C220Q-K 2-way zone valve are expertly designed for closed cold and warm water systems. Ideal for shut-off functions and modulating controls on the water side of air-handling units and heating systems, this series offers reliable performance and ease of use. With snap-assembly actuators and a range of technical specifications, these valves ensure efficient and precise fluid flow control. Functional Data Fluid Compatibility: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature Range: 2...100°C (with actuator 2...90°C) Close-off Pressure (∆ps): 520 kPa Differential Pressure (Δpmax): 280 kPa Flow Characteristic: Equal percentage (VDI/VDE 2173), optimized in the opening range Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Angle of Rotation: 90° (Operating range 15...90°) Installation Orientation: Upright to horizontal Mechanical Data Valve Body Material: Brass Closing Element: Chrome-plated brass Spindle: Brass Spindle Seal: EPDM O-ring Seat: PTFE, O-ring EPDM Pipe Connection: Internal thread according to ISO 7-1 Snap-Assembly Actuator: Tool-free snap assembly for quick and easy installation. Flow Setting: Adjustable angle of rotation in 2.5° increments for precise flow control. Maintenance-Free: Both ball valves and rotary actuators require no maintenance. Flow Direction: Bidirectional flow capability. Accessories Spindle Extension (CQ ZCQ-E) Pipe Connectors: DN 15 Rp 1/2" (ZR2315) DN 20 Rp 3/4" (ZR2320) DN 25 Rp 1" (ZR2325) Installation Notes Permissible Orientation: Must not be installed in a hanging position. Water Quality Requirements: Adherence to VDI 2035 for long-term functionality. Servicing: Isolate the rotary actuator from the power supply before any service work. Ensure all components are cooled down, and system pressure is reduced to ambient level. Certification and Compliance Safety: Designed for stationary heating, ventilation, and air-conditioning systems. EMC and Certification: Conforms to relevant standards, ensuring safe and reliable operation. Belimo's C220Q-K zone valve offers superior control and reliability for your HVAC systems. With a focus on ease of installation, maintenance-free operation, and precision control, these valves are the ideal choice for professional tradesmen and engineering companies. For more information and to explore our range of Belimo products, visit our website at (https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£42.20£29.54
-

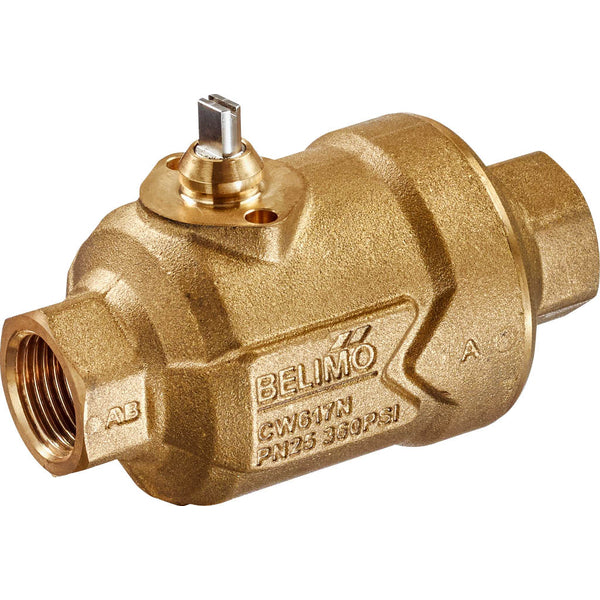

Belimo C220QP-F zone valve
Optimised for Modulating Control of Air-Handling and Heating Systems Introducing the Belimo PI Zone Valve, a state-of-the-art solution designed for closed cold and warm water systems, ensuring efficient and precise modulating control of air-handling and heating systems on the water side. With robust construction and advanced features, this valve is perfect for tradesmen and engineering companies looking for reliable and durable components. Click here for the technical data PDF Snap-Assembly of the Actuator: Quick and easy installation with snap-assembly. Equal Percentage Flow Control: Ensured by the special design of the ball for optimal performance. Integrated Pressure Regulating Valve: Achieves constant flow volume regardless of differential pressure. Measuring Ports: Equipped with P/T ports to easily determine pressure drops and ensure accurate flow rate. Technical Specifications Fluid: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature: -20...120°C [-4.0...248°F] Differential Pressure: 16...350 kPa Close-off Pressure: 1400 kPa Flow Characteristic: Equal percentage (VDI/VDE 2173), optimised in the opening range Pressure Stability: ±5% (35...350 kPa), ±10% (16...35 kPa) Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Angle of Rotation: 90° (Operating range 15...90°) Pipe Connection: Internal thread according to ISO 7-1 Installation Orientation: Upright to horizontal Servicing: Maintenance-free Materials Valve Body: Brass Closing Element: Stainless steel Spindle: Stainless steel Spindle Seal: EPDM O-ring Seat: PTFE, O-ring EPDM Diaphragm: EPDM Accessories Spindle Extension: CQ ZCQ-E Flow Limiter: PIQCV ZCQ-FL Pipe Connectors: DN 15 Rp 1/2" (ZR2315) DN 20 Rp 3/4" (ZR2320) DN 25 Rp 1" (ZR2325) Why You Should Buy The Belimo PI Zone Valve is a top-tier choice for anyone needing a reliable and efficient valve for modulating control in air-handling and heating systems. Its advanced features, such as the integrated pressure regulating valve and equal percentage flow control, ensure consistent performance and long-term durability. With a range of sizes and accessories available, this valve meets the diverse needs of tradesmen and engineering companies. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£174.00£121.80
-

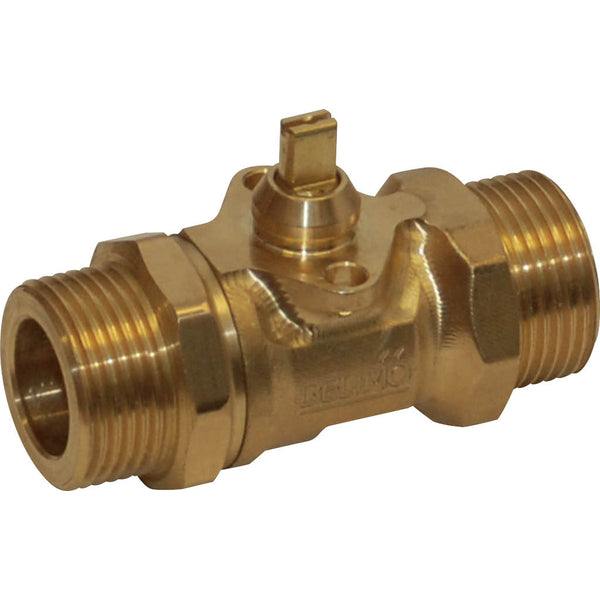

Belimo C420Q-K Zone Valve
Zone valve, 2-way, DN 20, External thread, G 3/4", PN 25, ps 1600 kPa, Kvs 7.8 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C) The Belimo Zone Valve C420Q-K is an advanced, high-performance valve designed for closed cold and warm water systems, ideal for shut-off functions and modulating controls in air-handling units and heating systems. Featuring a tool-free snap-assembly actuator and adjustable kvs values, this valve ensures precision and reliability in various HVAC applications. Click here for the technical data PDF Included Parts and Accessories Standard Package: Valve body Rotary actuator (specific model based on control requirements) Optional Accessories: Spindle extension (Type: ZCQ-E) Pipe connectors for DN15 (Rp 1/2") and DN20 (Rp 3/4") ball valves Functional Data: Fluid: Cold and warm water, water with glycol up to max. 50% vol. Fluid Temperature: 2...100°C [36...212°F] with actuator: 2...90°C Close-off Pressure (∆ps): 520 kPa Differential Pressure (Δpmax): 280 kPa (50 kPa for low-noise operation) Flow Characteristic: Equal percentage (VDI/VDE 2173), optimised in the opening range Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Flow Setting: Adjustable in 2.5° increments Angle of Rotation: 90° (Operating range 15...90°) Pipe Connection: External thread according to ISO 228-1 Installation Orientation: Upright to horizontal (in relation to the stem) Servicing: Maintenance-free Materials: Valve Body: Brass Closing Element: Chrome-plated brass Spindle: Brass Spindle Seal: EPDM O-ring Seat: PTFE, O-ring EPDM Safety and Compliance: Protection Class (IEC/EN): Rated according to specific actuator used Degree of Protection (NEMA/UL): Rated according to specific actuator used Certification: Compliance with EMC and other relevant standards Operating Mode: The ball valve is adjusted by a rotary actuator, controlled by an open/close signal or a modulating control system. Simple Direct Mounting: Tool-free snap assembly for quick and easy installation. Flow Direction: Can operate in both flow directions. Flow Setting Adjustability: Angle of rotation can be adjusted to set the kvs value, ensuring optimal flow rates. Maintenance-Free Design: Engineered for long-term reliability with no maintenance required. Installation Notes Orientation: Install upright to horizontal. Avoid hanging positions. Water Quality: Adhere to VDI 2035 water quality requirements to prevent particle debris. Flow Setting: Adjust kvs value by modifying the actuator's angle of rotation. Trigger adaptation on modulating actuators after changes. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£45.70£31.99
-

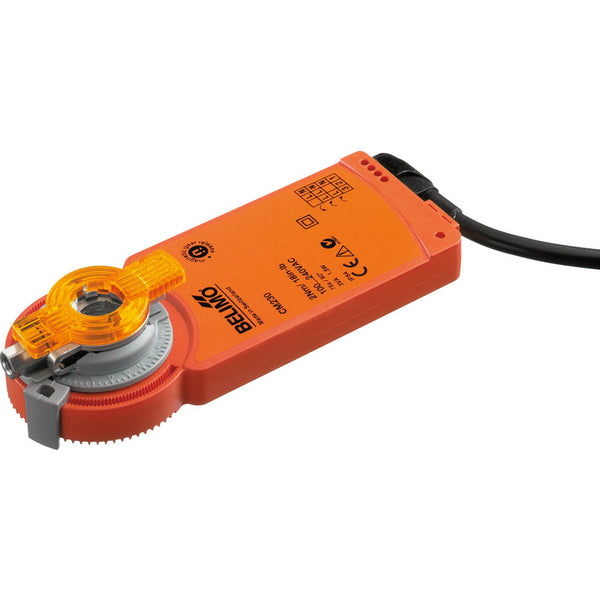

Belimo CM230-L Damper Actuator
The Belimo CM230-L Damper Actuator is a robust and reliable solution for adjusting dampers in technical building installations. It is ideal for tradesmen and engineering companies seeking efficient and precise control of air dampers. Click here for the technical data PDF The Belimo CM230-L is engineered to provide exceptional performance in various HVAC applications. This actuator is suitable for air dampers up to approximately 0.4 m² and offers a range of control options to ensure optimal functionality. Key features - Nominal Voltage: AC 100-240 V - Control: Open/close, 3-point - Torque Motor: 2 Nm - Angle of Rotation: 0...287.5°, with a mechanical end stop option at 315° - Running Time: 75 s per 90° - Protection Class: IEC/EN II, UL II - Degree of Protection: IP54, NEMA 2 - Manual Override: Integrated with a magnet - Mounting: Universal shaft clamp (Ø6...12.7 mm) with anti-rotation clip Electrical Data - Nominal Voltage: AC 100-240 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 85-265 V - Power Consumption in Operation: 1.5 W - Power Consumption in Rest Position: 1 W - Power Consumption for Wire Sizing: 3 VA - Connection Supply/Control: Cable 1 m, 3x 0.75 mm² - Parallel Operation: Yes (consider performance data) Functional Data - Torque Motor: 2 Nm - Direction of Motion: Counter-clockwise rotation - Manual Override: With magnet - Angle of Rotation: 0...287.5°, endless without limitation - Sound Power Level: 35 dB(A) - Mechanical Interface: Universal shaft clamp (Ø6...12.7 mm) - Position Indication: Mechanical, pluggable Safety Data - Protection Class IEC/EN: II, reinforced insulation - Protection Class UL: II, reinforced insulation - Degree of Protection IEC/EN: IP54 - Degree of Protection NEMA/UL: NEMA 2 - Enclosure UL: Type 2 - EMC: CE according to 2014/30/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1 Environmental Data - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 0.24 kg Available Accessories - Anti-rotation clip: Z-ARCM - Gear Train Disengagement Magnet: Z-MA - Position Indicator: Z-PICM - End Stop Clip: Z-ESCM - Shaft Extension: AV6-20 (170 mm Ø10 mm for damper shaft Ø6...16 mm) Why You Should Buy The Belimo CM230-L Damper Actuator stands out due to its high functional reliability, ease of installation, and robust performance in challenging environments. Its versatility in voltage range and control options makes it an ideal choice for various HVAC applications. The integrated manual override and adjustable angle of rotation provide additional flexibility and control, ensuring your systems operate smoothly and efficiently. For more information and to explore our range of Belimo products, visit our website at https://www.ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£114.00£79.80
-
Belimo CQ24A Rotary Actuator for Zone Valves
The Belimo CQ24A Rotary Actuator is a highly reliable and efficient solution for stationary heating, ventilation, and air-conditioning systems. With a nominal torque of 1 Nm, this actuator is perfect for precisely controlling zone valves in various HVAC applications. Its compact design and easy snap-assembly make installation straightforward, while its robust construction ensures long-lasting performance. Electrical Data: Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V Power Consumption in Operation: 0.3 W Power Consumption in Rest Position: 0.2 W Power Consumption for Wire Sizing: 0.6 VA Connection Supply/Control: Cable 1 m, 3 x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data: Torque Motor: 1 Nm Manual Override: With actuator (clicked out) Running Time Motor: 75 s / 90° Sound Power Level, Motor: 35 dB(A) Position Indication: Yes Flow Setting: Variable (see product features) Safety Data: Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Degree of Protection IEC/EN: IP40 EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 Type of Action: Type 1 Rated Impulse Voltage Supply/Control: 0.8 kV Pollution Degree: 2 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: 5...40°C [41...104°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.21 kg Tool-free Snap Assembly: The actuator can be easily mounted on the valve by hand. Ensure vertical movements only for correct pin alignment. Manual Override: Allows manual adjustment by clicking out the actuator. Adjustable Angle of Rotation: The angle can be changed in 2.5° increments to set the maximum flow rate. High Functional Reliability: Overload protection ensures automatic stop when the end stop is reached. Flow Setting: Adjustable kv-values and V'max-values for precise flow control. Accessories Spindle Extension: Type CQ ZCQ-E Housing Cover (White, RAL 9010): Type ZCQ-W End Stop Clip (Multipack 5 pcs): Type ZCQ-C End Stop Clip (Multipack 20 pcs): Type Z-ESCM Installation Requirements: Only authorised specialists should install, complying with all applicable regulations. Environmental Conditions: Suitable for indoor use where ambient conditions remain within specified thresholds. Disposal: Contains electronic components and must not be disposed of as household refuse. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£88.70£62.09
-

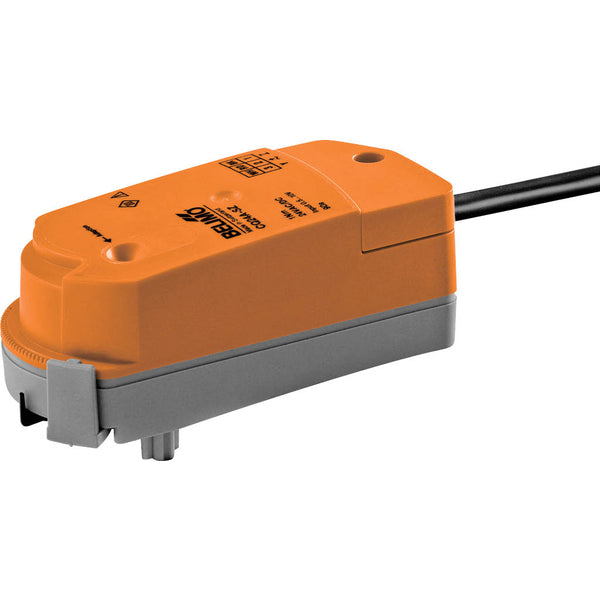

Belimo CQ24A-SR rotary actuator for zone valves
Discover the precision and reliability of the Belimo CQ24A-SR Rotary Actuator, engineered for optimal performance in heating, ventilation, and air-conditioning systems. Designed with advanced features and robust construction, this actuator ensures efficient and accurate control of zone valves, making it an essential component for modern HVAC systems. Click here for the technical data PDF The Belimo CQ24A-SR Rotary Actuator is a top-tier solution for zone valve automation. Featuring a nominal torque of 1 Nm, this actuator operates with a nominal voltage of AC/DC 24 V and offers a modulating control range of 2 to 10 V. It’s designed for easy snap-assembly and provides precise position feedback, ensuring seamless integration and operation within your HVAC system. Electrical Data Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V Power Consumption in Operation: 0.3 W Power Consumption in Rest Position: 0.3 W Power Consumption for Wire Sizing: 0.6 VA Connection Supply / Control: Cable 1 m, 4 x 0.34 mm² Parallel Operation: Yes (note the performance data) Functional Data Torque Motor: 1 Nm Operating Range Y: 2...10 V Input Impedance: 100 kΩ Position Feedback U: 2...10 V Manual Override: With actuator (clicked out) Running Time Motor: 75 s / 90° Sound Power Level, Motor: 35 dB(A) Position Indication: Mechanical Flow Setting: Variable Safety Data Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Degree of Protection IEC/EN: IP40 EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 2 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: 5...40°C [41...104°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight Weight: 0.21 kg Simple Direct Mounting: Tool-free snap assembly; actuator plugs onto the valve by hand. Adjustable Angle of Rotation: Changeable in 2.5° increments to set the maximum flow rate. High Functional Reliability: Overload protected and requires no limit switches, automatically stopping at the end stop. Manual Override: Easily rotate the valve spindle using the actuator. Flow Setting: Adjustable for different valve types. Safety Notes This device is designed for use in stationary HVAC systems and must not be used in aircraft or any other airborne means of transport. Outdoor applications are possible only if conditions like no direct interference from seawater, snow, ice, insolation, or aggressive gases are ensured, and ambient conditions remain within specified thresholds. Accessories Spindle Extension: Type ZCQ-E Housing Cover: Colour white (RAL 9010), Type ZCQ-W End Stop Clip Multipack: 5 pcs. (ZCQ-C), 20 pcs. (Z-ESCM) For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us.
£88.70£62.09
-
Belimo CQ24A-SZ Rotary Actuator
The Belimo CQ24A-SZ is a high-performance rotary actuator designed to precisely control zone valves in HVAC systems. Engineered for reliability and ease of use, it ensures optimal operation in various environments, making it ideal for tradesmen and engineering companies. Click here for the technical data PDF Electrical Data: - Nominal Voltage: AC/DC 24 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V - Power Consumption in Operation: 0.3 W - Power Consumption in Rest Position: 0.3 W - Power Consumption for Wire Sizing: 0.6 VA - Connection Supply / Control: Cable 1 m, 4 x 0.34 mm² - Parallel Operation: Yes (note the performance data) Functional Data: - Torque Motor: 1 Nm - Operating Range (Y): 0.5...10 V - Input Impedance: 100 kΩ - Position Feedback (U): 0.5...10 V - Manual Override: With actuator (clicked out) - Running Time Motor: 75 s / 90° - Sound Power Level, Motor: 35 dB(A) - Position Indication: Mechanical - Flow Setting: See product features Safety Data: - Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) - Degree of Protection IEC/EN: IP40 - EMC: CE according to 2014/30/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - Type of Action: Type 1 - Rated Impulse Voltage Supply / Control: 0.8 kV - Pollution Degree: 2 - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: 5...40°C [41...104°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free Mechanical Data: - Weight: 0.21 kg Product Features: - Simple Direct Mounting: Easy snap-assembly without tools. - Adjustable Angle of Rotation: Allows precise control over flow rates. - High Functional Reliability: Overload protection and automatic stop at end positions. - Flow Setting: Adjustable kv-values per respective zone valve data sheets. Accessories: - Spindle Extension: CQ ZCQ-E - Housing Cover: CQ, Colour: white (RAL 9010) ZCQ-W - End Stop Clip: Multipack 5 pcs. ZCQ-C, Multipack 20 pcs. Z-ESCM Installation Notes: - Electrical Installation: Supply from isolating transformer. Parallel connection of other actuators is possible; observe performance data. - Wiring Colours: 1 = black, 2 = red, 3 = white, 5 = orange - Operating Controls: Push-button triggers angle of rotation adaptation followed by standard mode. Why Choose the Belimo CQ24A-SZ: - Reliability: Ensures high functional reliability with maintenance-free operation. - Flexibility: Adjustable angle of rotation and easy snap-assembly. - Compliance: Meets all relevant safety and performance standards, including CE and IEC/EN certifications. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£88.70£62.09
-

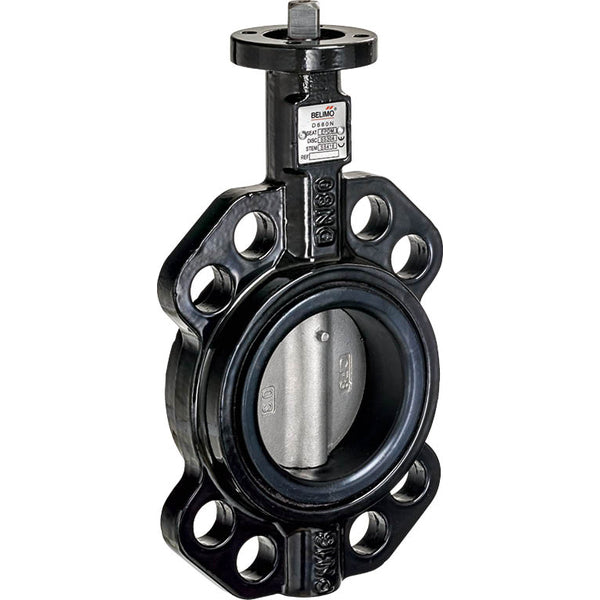

Belimo D665N Butterfly Valve (DN65)
The Belimo D6..N series butterfly valves are essential components in various industrial applications, and they are known for their cost-effectiveness, lightweight design, and efficient flow regulation. These quarter-turn rotational motion valves are ideal for controlling the flow through pipelines by quickly opening or closing with a simple 90-degree rotation. Widely used in pharmaceutical, chemical, and food industries, as well as in water flow control for dams and hydroelectric power plants, butterfly valves offer both control and protection functions. Their versatility and reliability make them a preferred choice for managing flow in numerous applications, ensuring optimal performance and safety. Click here for the technical data PDF Type Overview - D625N: DN 25, Kvmax 50 m³/h, Kvs 24 m³/h, PN 6/10/16, n(gl) 3.2 - D632N: DN 32, Kvmax 55 m³/h, Kvs 25 m³/h, PN 6/10/16, n(gl) 3.2 - D640N: DN 40, Kvmax 65 m³/h, Kvs 27 m³/h, PN 6/10/16, n(gl) 3.2 - D650N: DN 50, Kvmax 100 m³/h, Kvs 30 m³/h, PN 6/10/16, n(gl) 3.2 - D665N: DN 65, Kvmax 170 m³/h, Kvs 50 m³/h, PN 6/10/16, n(gl) 3.2 - D680N: DN 80, Kvmax 260 m³/h, Kvs 75 m³/h, PN 6/10/16, n(gl) 3.2 - D6100N: DN 100, Kvmax 520 m³/h, Kvs 150 m³/h, PN 6/10/16, n(gl) 3.2 - D6125N: DN 125, Kvmax 880 m³/h, Kvs 260 m³/h, PN 6/10/16, n(gl) 3.2 - D6150N: DN 150, Kvmax 1400 m³/h, Kvs 400 m³/h, PN 6/10/16, n(gl) 3.2 - D6350N: DN 350, Kvmax 10300 m³/h, Kvs 3010 m³/h, PN 10/16, n(gl) 3.2 - D6400N: DN 400, Kvmax 14200 m³/h, Kvs 4140 m³/h, PN 16, n(gl) 3.2 - D6450N: DN 450, Kvmax 18800 m³/h, Kvs 5490 m³/h, PN 16, n(gl) 3.2 - D6500N: DN 500, Kvmax 24100 m³/h, Kvs 7060 m³/h, PN 16, n(gl) 3.2 - D6600N: DN 600, Kvmax 37300 m³/h, Kvs 10900 m³/h, PN 16, n(gl) 3.2 - D6700N: DN 700, Kvmax 42800 m³/h, Kvs 11760 m³/h, PN 16, n(gl) 3.2 The types D6200N, D6250N, and D6300N have been replaced by D6200W, D6250W, and D6300W respectively. Functional Data - Fluid: Cold and warm water, water with glycol up to max. 50% vol. - Fluid Temperature: -10...120°C [14...248°F] - Flow Characteristic: - 0...60% opening angle: equal percentage (VDI/VDE 2173) - 0...100% opening angle: S-form - Leakage Rate: Tight, leakage rate A (EN 12266-1) - Angle of Rotation: 90° - Pipe Connection: Flange according to ISO 7005-2, EN 1092-2, PN6/10/16, AS Table E (DN 50...150), PN10/16, AS Table E (DN 350), PN16 (DN 400...600) - Installation Orientation: Upright to horizontal (in relation to the stem) - Servicing: Maintenance-free Materials - Valve Body: EN-GJS-400-15 (GGG 40) - Body Finish: Polyester powder coated - Closing Element: Stainless steel AISI 304 (1.4301) - Spindle: - Stainless steel AISI 420 (1.4021) (DN 25, 32, 40, 50, 65, 80, 100, 125, 150) - Stainless steel AISI 630 (1.4542) (DN 350, 400, 450, 500, 600, 700) - Spindle Seal: EPDM O-ring - Spindle Bearing: RPTFE - Seat: EPDM Operating Mode The butterfly valve is opened or closed completely by an open/close rotary actuator. A commercially available controller connects continuous rotary actuators and move the valve to any desired position. The valve disk made of stainless steel is pressed into the soft-sealing EPDM seat by a rotary movement, ensuring a tight seal with minimal pressure loss when open, maximising the Kv value. Manual Override - Manual Throttling/Isolation: With lever or worm gear (see accessories) - With lever (DN 25…150): Adjustable in 10 ratchet steps with position indication (0 = 0°; 9 = 90°) - With worm gear (DN 25...700): Steplessly adjustable (self-locking) with position indication Accessories - Electrical: Stem heater flange F05 (30 W) ZR24-F05 - Mechanical: - Worm gear for butterfly valves DN 25...100 ZD6N-S100 - Lever for butterfly valves DN 25...100 ZD6N-H100 - Worm gear for butterfly valves DN 125...300 ZD6N-S150 - Lever for butterfly valves DN 125...150 ZD6N-H150 - Worm gear for butterfly valves DN 350 ZD6N-S350 - Worm gear for butterfly valves DN 400 ZD6N-S400 - Worm gear for butterfly valves DN 450 ZD6N-S450 - Worm gear for butterfly valves DN 500 ZD6N-S500 - Worm gear for butterfly valves DN 600 ZD6N-S600 - Worm gear for butterfly valves DN 700 ZD6N-S700 Flow Setting - Characteristic Curve: Equal percentage characteristic curve between 0...60% opening angle. Linear characteristic curve can be set using the Belimo Assistant App. Dimensions Refer to the dimensional drawings for precise measurements in the included images. For more information and to explore our range of Belimo products, visit our website at [ecospares.co.uk/collections/belimo](https://ecospares.co.uk/collections/belimo). If you need any assistance, please get in touch with us on 01772 284 626.
£172.00£120.40
-

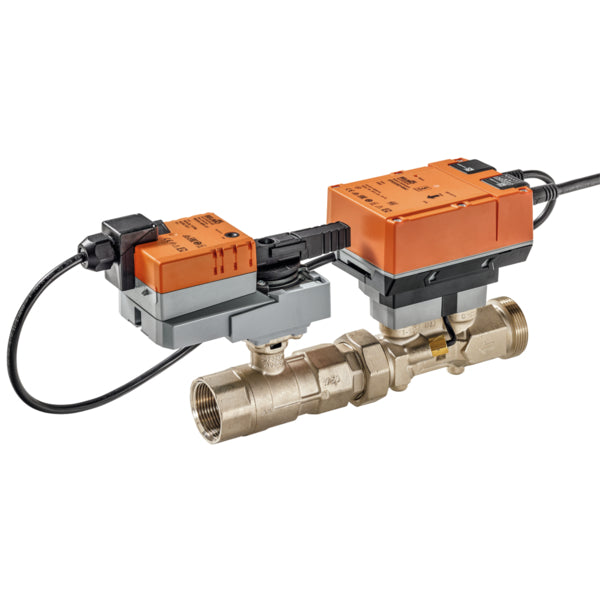

Belimo EP015R2+BAC control valve
Enhance the performance and reliability of your HVAC system with the Belimo EP015R2+BAC Control Valve. Designed for precise control in closed cold and warm water systems, this valve ensures efficient operation in air-handling and heating systems. Click here for the technical data PDF NOTE: The accessory EXT-EF-F (pipe connector) is required for installation in the pipe. Please include in your order! See below in "Mechanical accessories" Mechanical accessories: Pipe connector DN 15 Rp 1/2", G 3/4" - EXT-EF-15F Pipe connector DN 20 Rp 3/4", G 1" - EXT-EF-20F Pipe connector DN 25 Rp 1", G 1 1/4" - EXT-EF-25F Pipe connector DN 32 Rp 1 1/4", G 1 1/2" - EXT-EF-32F Pipe connector DN 40 Rp 1 1/2", G 2" - EXT-EF-40F Pipe connector DN 50 Rp 2", G 2 1/2" - EXT-EF-50F Electrical Data: Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V Power Consumption in Operation: 4 W (DN 15, 20, 25); 5 W (DN 32, 40, 50) Power Consumption in Rest Position: 3.7 W (DN 15, 20, 25); 3.9 W (DN 32, 40, 50) Power Consumption for Wire Sizing: 6.5 VA (DN 15, 20, 25); 7.5 VA (DN 32, 40, 50) Connection Supply / Control: Cable 1 m, 6x 0.75 mm² Functional Data: Operating Range Y: 2...10 V Operating Range Y Variable: 0.5...10 V Position Feedback U: 2...10 V Position Feedback U Note: Max. 1 mA Sound Power Level Motor: 35 dB(A) (DN 15, 20, 25, 32, 40); 45 dB(A) (DN 50) V'max Adjustable: 25...100% of V'nom Control Accuracy: ±5% (of 25...100% V'nom) Control Accuracy Note: ±10% (of 25...100% V'nom) @ Glycol 0...60% vol. Min. Controllable Flow: 1% of V'nom Parametrisation: Via NFC, Belimo Assistant App Fluid: Cold and warm water, water with glycol up to max. 60% vol. Fluid Temperature: -10...120°C [14...248°F] Close-Off Pressure Δps: 1400 kPa Differential Pressure Δpmax: 350 kPa Differential Pressure Note: 200 kPa for low-noise operation Flow Characteristic: Equal percentage, optimised in the opening range (switchable to linear) Leakage Rate: Air-bubble tight, leakage rate A (EN 12266-1) Pipe Connection: Internal and external thread Installation Orientation: Upright to horizontal (in relation to the stem) Servicing: Maintenance-free Manual Override: With push-button, can be locked Measuring Data: Measured Values: Flow, fluid temperature in valve unit Temperature Sensor: Pt1000 EN 60751, 2-wire technology, integrated in flow sensor Temperature Measurement Accuracy: ±0.35°C @ 10°C (Pt1000 EN60751 Class B); ±0.6°C @ 60°C (Pt1000 EN60751 Class B) Flow Measurement Principle: Ultrasonic volumetric flow measurement Flow Measurement Accuracy: ±2% (of 20...100% V'nom) @ 20°C / glycol 0% vol.; ±5% (of 20...100% V'nom) @ glycol 0...60% vol. Min. Flow Measurement: 0.5% of V'nom Glycol Monitoring: Measurement display glycol 0...60% or >60%; accuracy ±4% (0...60%) Safety Data: Protection Class IEC/EN: III, Protective Extra-Low Voltage (PELV) Degree of Protection IEC/EN: IP54 Pressure Equipment Directive: CE according to 2014/68/EU EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1:11 and IEC/EN 60730-2-15:10 Quality Standard: ISO 9001 Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 3 Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Materials: Valve Body: Brass Flow Measuring Pipe: Brass body nickel-plated Closing Element: Stainless steel Spindle: Stainless steel Spindle Seal: EPDM O-ring Installation Notes: The ball valve can be installed upright to horizontal but not in a hanging position. Installation in the return is recommended to maintain accuracy. Adhere to VDI 2035 water quality requirements for long-term functionality. Suitable strainers should be installed to prevent particle debris. Split installation is possible with observance of the direction of flow for both components. Operating Mode: The HVAC performance device is comprised of three components: characterised control valve (CCV), measuring pipe with flow sensor, and the actuator itself. The adjusted maximum flow (V'max) is assigned to the maximum control signal (typically 100%). The device can be controlled via communicative signals. The fluid is detected by the sensor in the measuring pipe and applied as the flow value. The measured value is balanced with the setpoint, and the actuator corrects the deviation by changing the valve position. The angle of rotation varies according to the differential pressure through the control element. Calibration Certificate: Available in the Belimo Cloud for each device. It can be downloaded as a PDF through the Belimo Assistant App. Control Characteristics: The fluid velocity is measured in the measuring component and converted to a flow rate signal. The control signal corresponds to the power via the exchanger, regulating the flow in the EPIV. The control signal is converted into an equal-percentage characteristic curve and provided with the V'max value as the new reference variable. The momentary control deviation forms the control signal for the actuator. The precise flow sensor ensures stable control quality, although it is not suitable for rapid control processes like domestic water control. Fluid Temperature Measurement: The temperature sensor integrated into the flow sensor permanently measures the medium temperature. The measured value can be read via the bus system or the analogue feedback signal. The current measured value is also displayed in the Belimo Assistant App. Creep Flow Suppression: Electronically overrides the very low flow speed in the opening point that the sensor cannot measure within the required tolerance. Converter for Sensors: Connection option for a sensor (active or with switching contact), allowing the analogue sensor signal to be digitised and transferred to the bus systems BACnet, Modbus, or MP-Bus. Control Signal Inversion: Inverts the control signal in cases where the standard behaviour needs reversing. For example, at a control signal of 0%, regulation is to V'max, and the valve is closed at a control signal of 100%. Hydronic Balancing: Maximum flow rate can be adjusted on-site with Belimo tools. If integrated into the management system, balancing can be handled directly by the system. Combination Analogue-Communicative (Hybrid Mode): Uses conventional control by an analogue control signal with communicative position feedback via BACnet, Modbus, or MP-Bus. Glycol Monitoring: Measures the actual glycol content to ensure safe operation and optimised heat exchange. Error Readout with Analogue Position Feedback: Indicates sensor errors by 0.3 V at the position feedback U, only if the feedback U is set to flow and the lower value of the signal range is 0.5 V or more. High Functional Safety: The actuator is overload protected, requires no limit switches, and automatically stops when the end stop is reached. Safety Notes: The device is designed for use in stationary heating, ventilation, and air-conditioning systems and must not be used outside the specified field of application, such as in aircraft or any airborne means of transport. Outdoor application is only possible if conditions such as no (sea) water, snow, ice, insolation, or aggressive gases interfering directly with the device are met, and ambient conditions remain within the specified thresholds. Installation notes: Flow Direction: The direction of flow, specified by an arrow on the housing, must be complied with to ensure correct flow rate measurement. Inlet Section: A flow-calming section or inflow section in the direction of the flow must be provided upstream from the flow sensor to achieve the specified measuring accuracy. The dimensions should be at least 5x DN. Split Installation: The valve-actuator combination may be mounted separately from the flow sensor, with observance of the direction of flow for both components. Minimum Differential Pressure: The minimum required differential pressure for achieving the desired volumetric flow V'max can be calculated with the theoretical kvs value and the desired maximum flow rate. Behaviour in Case of Sensor Failure: In case of a flow sensor error, the EPIV will switch from flow control to position control. Once the error disappears, the EPIV will switch back to the normal control setting. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us.
£552.00£386.40
-
Belimo EXT-EF-15F Pipe connector
Pipe connector, DN 15, Rp 1/2", G 3/4" Valve size 15mm
£14.20£9.94
-

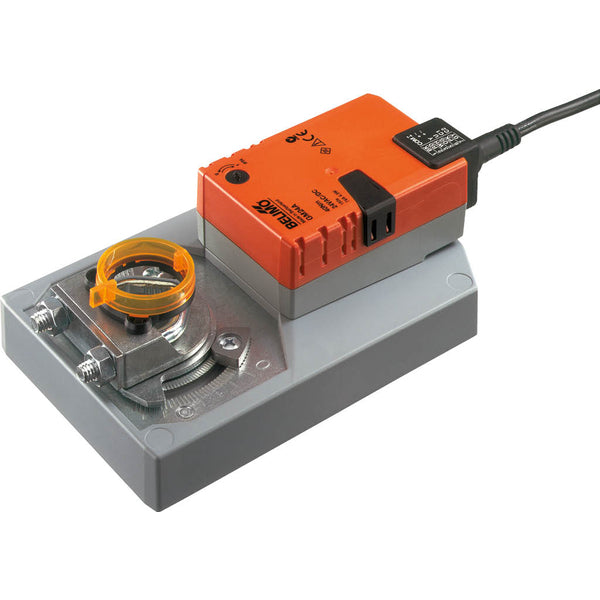

Belimo GM24A Damper Actuator
The Belimo GM24A Damper Actuator is designed to adjust dampers in technical building installations. Ideal for tradesmen and engineering companies, it offers robust performance for air dampers up to approximately 8 m². This actuator's versatile and user-friendly features ensures efficient and reliable damper control. Electrical Data: - Nominal Voltage: AC/DC 24 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V - Power Consumption in Operation: 4 W - Power Consumption in Rest Position: 2 W - Power Consumption for Wire Sizing: 6 VA - Connection Supply / Control: Cable 1 m, 3x 0.75 mm² - Parallel Operation: Yes (note the performance data) Functional Data: - Torque Motor: 40 Nm - Direction of Motion Motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation) - Manual Override: With push-button, can be locked - Angle of Rotation: Max. 95° - Angle of Rotation Note: Can be limited on both sides with adjustable mechanical end stops - Running Time Motor: 150 s / 90° - Sound Power Level Motor: 45 dB(A) - Mechanical Interface: Universal shaft clamp reversible 12...26.7 mm - Position Indication: Mechanical, pluggable Safety Data: - Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) - Power Source UL: Class 2 Supply - Degree of Protection IEC/EN: IP54 - Degree of Protection NEMA/UL: NEMA 2 - Enclosure UL: Enclosure Type 2 - EMC: CE according to 2014/30/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission - Type of Action: Type 1 - Rated Impulse Voltage Supply / Control: 0.8 kV - Pollution Degree: 3 Environmental Data: - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 1.6 kg Product Features - Simple Direct Mounting: Easy installation on the damper shaft with a universal shaft clamp, including an anti-rotation device. - Manual Override: Push-button manual override is used to disengage the gear train. - Adjustable Angle of Rotation: Customizable with mechanical end stops. - High Functional Reliability: Overload protection and automatic stop when the end stop is reached. Accessories - Electrical Accessories: - Auxiliary switch 1x SPDT add-on (S1A) - Auxiliary switch 2x SPDT add-on (S2A) - Feedback potentiometer 140 Ω add-on (P140A) - Feedback potentiometer 1 kΩ add-on (P1000A) - Feedback potentiometer 10 kΩ add-on (P10000A) - Mechanical Accessories: - Actuator arm for standard shaft clamp (AH-GMA) - Ball joint suitable for damper crank arm (KH8 / KH10 KG10A) - Damper crank arm Slot width 8.2 mm, clamping range ø14...25 mm (KH10) - Anti-rotation mechanism 230 mm, Multipack 20 pcs. (Z-ARS230) - Mounting kit for linkage operation for flat installation (ZG-GMA) - Baseplate extension for GM..A to GM.. (Z-GMA) - Position indicator, Multipack 20 pcs. (Z-PI) Notes - Wire Colours: - 1 = black - 2 = red - 3 = white For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£316.00£221.20
-

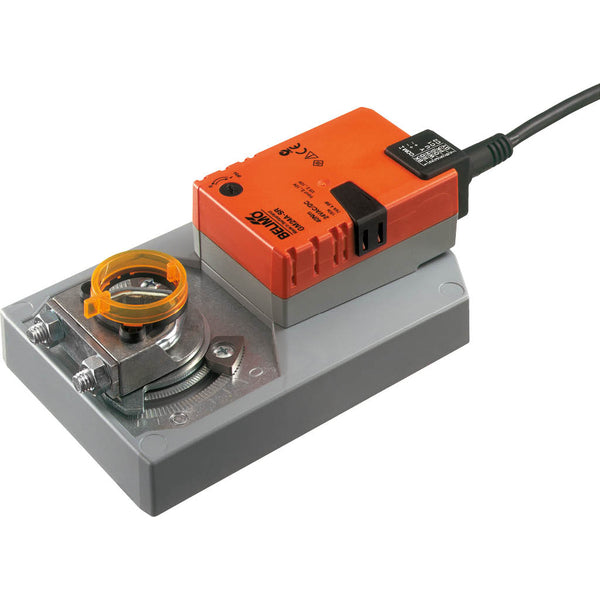

Belimo GM24A-SR Modulating Damper Actuator
The Belimo GM24A-SR Modulating Damper Actuator is designed for precise adjustment of dampers in technical building installations, suitable for air damper sizes up to approximately 8 m². With a robust torque motor and efficient power consumption, it ensures reliable performance for HVAC systems. Click here for the technical data PDF Electrical Data: - Nominal Voltage: AC/DC 24 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V - Power Consumption in Operation: 4.5 W - Power Consumption in Rest Position: 2 W - Power Consumption for Wire Sizing: 6.5 VA - Connection Supply / Control: Cable 1 m, 4x 0.75 mm² - Parallel Operation: Yes (note the performance data) Functional Data: - Torque Motor: 40 Nm - Operating Range Y: 2...10 V - Input Impedance: 100 kΩ - Position Feedback U: 2...10 V - Position Feedback U Note: Max. 1 mA - Position Accuracy: ±5% - Direction of Motion Motor: Selectable with switch 0/1 - Direction of Motion Note: Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation) - Manual Override: With push-button, can be locked - Angle of Rotation: Max. 95° - Angle of Rotation Note: Can be limited on both sides with adjustable mechanical end stops - Running Time Motor: 150 s / 90° - Sound Power Level, Motor: 45 dB(A) - Mechanical Interface: Universal shaft clamp reversible 12...26.7 mm - Position Indication: Mechanical, pluggable Safety Data: - Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) - Power Source UL: Class 2 Supply - Degree of Protection IEC/EN: IP54 - Degree of Protection NEMA/UL: NEMA 2 - Enclosure UL: Enclosure Type 2 - EMC: CE according to 2014/30/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 Environmental Data: - UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission - Type of Action: Type 1 - Rated Impulse Voltage Supply / Control: 0.8 kV - Pollution Degree: 3 - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 1.6 kg Operating Mode: The actuator connects with a standard control signal of 0...10 V and drives to the position defined by the control signal. Measuring voltage U serves for the electrical display of the damper position 0...100% and as control signal for other actuators. Simple Direct Mounting: Direct mounting on the damper shaft with a universal shaft clamp, equipped with an anti-rotation device to prevent rotation. Manual Override: Possible with push-button (gear train disengaged while pressed or locked). Adjustable Angle of Rotation: Mechanical end stops allow for adjustable angle. High Functional Reliability: Overload protection with no need for limit switches, automatically stops when end stop is reached. Electrical Accessories: - Auxiliary switch 1x SPDT add-on S1A - Auxiliary switch 2x SPDT add-on S2A - Feedback potentiometers (140 Ω, 1 kΩ, 10 kΩ) - Signal converter voltage/current Z-UIC - Positioners for various mounting options (SGA24, SGE24, SGF24, CRP24-B1) Mechanical Accessories: - Actuator arm for standard shaft clamp AH-GMA - Ball joint suitable for damper crank arm KH8 / KH10 KG10A - Damper crank arm KH10 - Anti-rotation mechanism Z-ARS230 - Mounting kit for linkage operation ZG-GMA - Baseplate extension for GM..A to GM.. Z-GMA - Position indicator Z-PI For more information and to explore our range of Belimo products, visit our website at https://www.ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£378.00£264.60
-

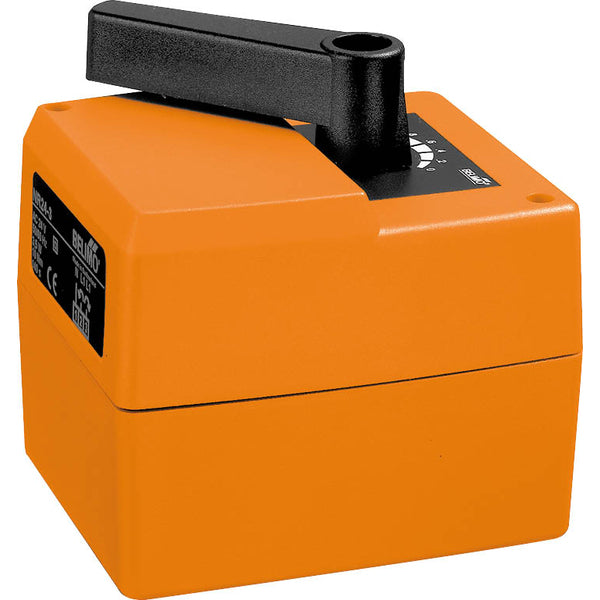

Belimo HT230-3 Rotary Actuator
The Belimo HT230-3 Rotary Actuator is a robust and reliable solution for motorising common mixing valves in HVAC systems. This actuator, designed for ease of use and maximum efficiency, is ideal for stationary heating, ventilation, and air-conditioning systems. A high-torque motor and user-friendly features ensure seamless operation and maintenance. Click here for the technical data PDF Electrical Data: - Nominal Voltage: AC 230 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 198...264 V - Power Consumption in Operation: 3.5 W - Power Consumption for Wire Sizing: 3.5 VA - Connection Supply/Control: Cable 1 m, 3x 0.75 mm² - Parallel Operation: No Functional Data: - Torque Motor: 10 Nm - Direction of Motion Motor: Clockwise rotation - Manual Override: Temporary and permanent gear train disengagement with rotary knob on the housing - Angle of Rotation: 90° - Running Time Motor: 140 s / 90° - Sound Power Level Motor: 37 dB(A) - Duty Cycle Value: 75% (= active time 140 s / operating time 187 s) - Position Indication: Reversible scale plate Safety Data: - Protection Class IEC/EN: II, reinforced insulation - Degree of Protection IEC/EN: IP40 - EMC: CE according to 2014/30/EU - Low Voltage Directive: CE according to 2014/35/EU - Type of Action: Type 1 - Rated Impulse Voltage Supply/Control: 4 kV - Pollution Degree: 3 - Ambient Humidity Max: 95% RH, non-condensing - Ambient Temperature: 0...50°C [32...122°F] - Storage Temperature: -30...80°C [-22...176°F] - Servicing: Maintenance-free - Weight: 0.49 kg - Housing Colours: Orange (both cover and base) Accessories: - Electrical Accessories: - Auxiliary switch 1x SPDT for 3-point HT actuators with cable connection (Type: SNR) - Mechanical Accessories: - Mounting kit for LK mixing valve (Type: MS-NRA) - Mounting kit for Barberi mixing valves (Type: MS-NRB) - Mounting kit for Honeywell/Centra DR..MA mixing valves (Type: MS-NRC) - Mounting kit for Honeywell/Centra DRU.. mixing valves (Type: MS-NRC1) - Mounting kit for mixing valves with 12 mm round shaft (Type: MS-NRE) - Mounting kit for ESBE mixing valves VRG/VRB/VRH (Type: MS-NRE6) - Mounting kit for Hora mixing valves (Type: MS-NRH) - Mounting kit for Siemens/Landis&Stäfa mixing valves VCI/VBG/VBF (Type: MS-NRL) - Mounting kit for Lazzari mixing valves (Type: MS-NRLA) - Mounting kit for Lovato mixing valves (Type: MS-NRLO) - Mounting kit for Satchwell MB mixing valves (Type: MS-NRS) - Mounting kit for Satchwell MBF mixing valves (Type: MS-NRSF) Why Choose Belimo HT230-3 Rotary Actuator? High Functional Reliability: Automatically switches off when end stops are reached. Easy Installation: Simple direct mounting with only one screw and the option to freely select the mounting orientation in steps of 90°. Manual Override: Temporary gear train disengagement by pushing the rotary knob; permanent disengagement by pushing and simultaneously rotating the rotary knob clockwise 90°. For more information and to explore our range of Belimo products, visit our website at ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£181.00£126.70
-
Belimo HT24-SR mixing valve actuator
The Belimo HT24-SR Rotary Actuator is designed for use with a mounting kit to motorize the most common mixing valves in HVAC systems. With robust performance and reliable operation, this actuator is ideal for precise control in heating, ventilation, and air-conditioning applications. Click here for the technical data PDF Electrical Data Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V Power Consumption in Operation: 1.5 W Power Consumption for Wire Sizing: 2.5 VA Connection Supply / Control: Cable 1 m, 4x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data Torque Motor: 10 Nm Operating Range (Y): 2...10 V (selectable 0...10 V or 2...10 V) Position Feedback (U): 2...10 V Position Accuracy: ±5% Direction of Motion Motor: Clockwise rotation Manual Override: Temporary and permanent gear train disengagement with rotary knob Angle of Rotation: 90° Running Time Motor: 140 s / 90° Sound Power Level: 37 dB(A) Duty Cycle Value: 75% (= active time 140 s / operating time 187 s) Position Indication: Reversible scale plate Safety Data Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Degree of Protection IEC/EN: IP40 EMC: CE according to 2014/30/EU Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 3 Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: 0...50°C [32...122°F] Storage Temperature: -30...80°C [-22...176°F] Servicing: Maintenance-free Weight: 0.46 kg Operating Mode: Connected with a standard control signal of 0...10 V, drives to the defined position. Simple Direct Mounting: Easy mounting with one screw, orientation adjustable in 90° steps. Manual Override: Temporary and permanent gear disengagement with a rotary knob. High Functional Reliability: Overload protected, automatic stop at end stop, restart attempts in blocking conditions. Mechanical Accessories: Mounting kit for LK mixing valve (Type: MS-NRA) Mounting kit for Barberi mixing valves (Type: MS-NRB) Mounting kit for Honeywell/Centra DR..MA mixing valves (Type: MS-NRC) Mounting kit for Honeywell/Centra DRU.. mixing valves (Type: MS-NRC1) Mounting kit for mixing valves with 12 mm round shaft (Type: MS-NRE) Mounting kit for ESBE mixing valves VRG/VRB/VRH (Type: MS-NRE6) Mounting kit for Hora mixing valves (Type: MS-NRH) Mounting kit for Siemens/Landis&Stäfa mixing valves VCI/VBG/VBF (Type: MS-NRL) Mounting kit for Lazzari mixing valves (Type: MS-NRLA) Mounting kit for Lovato mixing valves (Type: MS-NRLO) Mounting kit for Satchwell MB mixing valves (Type: MS-NRS) Mounting kit for Satchwell MBF mixing valves (Type: MS-NRSF) Why You Should Buy The Belimo HT24-SR Rotary Actuator offers precise control and high reliability, making it a valuable component for HVAC systems. Its simple installation and maintenance-free operation ensure long-term performance with minimal downtime. Suitable for a range of mixing valves, this actuator is versatile and efficient, ensuring your system operates smoothly and effectively. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£261.00£182.70
-

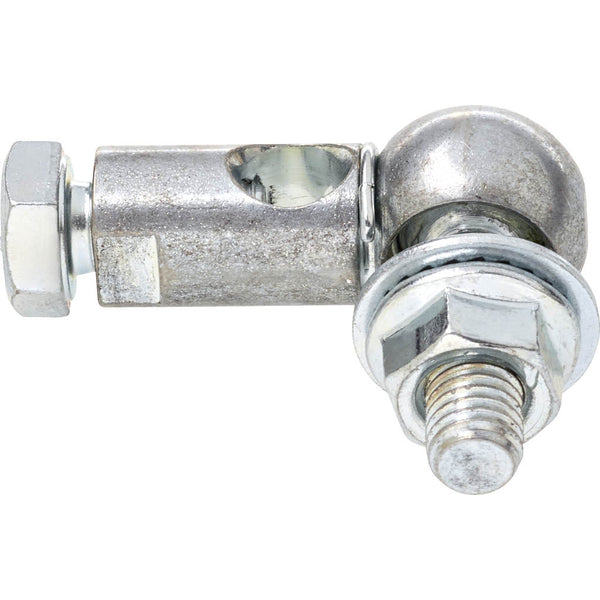

Belimo KG8 Ball Joint
Belimo Ball joint suitable for the KH8 damper crank arm, made with galvanised steel Belimo KH8 Crank Arm - https://ecospares.co.uk/products/belimo-kh8-damper-crank-arm
£15.00£10.50
-
Belimo KH8 Damper Crank Arm
Belimo Damper crank arm Slot width 8.2 mm, clamping range ø10...18 mm
£14.50£10.15
-
Belimo LF230 (Domestic Biomass Boiler Fail-Safe Actuator)
This Belimo LF230 safety actuator is used on the following biomass boiler models: WES E-Compact 28 Trianco Greenflame 25 Bioflame 28 For commercial boilers (55kW+) please see the LF230-S - ecospares.co.uk/products/commercial-belimo-valve Part no. 400715 Click here for the technical data PDF The Belimo LF230 Rotary Actuator is designed to precisely control air dampers in HVAC systems, ensuring optimal performance and reliability. With its fail-safe mechanism, this actuator provides dependable operation in critical applications. Suitable for air dampers up to 0.8 m², the LF230 is built for efficiency, durability, and ease of installation. Nominal Voltage: AC 100...240 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 85...265 V Power Consumption in Operation: 3.5 W Power Consumption in Rest Position: 2 W Power Consumption for Wire Sizing: 6.5 VA Connection Supply / Control: Cable 1 m, 2x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data Torque Motor: 4 Nm Torque Fail-Safe: 4 Nm Direction of Motion Motor: Selectable by mounting L/R Direction of Motion Fail-Safe: Selectable by mounting L/R Manual Override: No Angle of Rotation: Max. 95° Adjustable Angle of Rotation: 37...100% with integrated mechanical limitation Running Time Motor: 75 s / 90° Running Time Fail-Safe: <20 s @ -20...50°C / <60 s @ -30°C Sound Power Level, Motor: 50 dB(A) Mechanical Interface: Universal shaft clamp 8...16 mm Position Indication: Mechanical Service Life: Min. 60,000 fail-safe positions Safety Data Protection Class IEC/EN: II, reinforced insulation Degree of Protection IEC/EN: IP54 EMC: CE according to 2014/30/EU Low Voltage Directive: CE according to 2014/35/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission Type of Action: Type 1.B Rated Impulse Voltage Supply / Control: 4 kV Pollution Degree: 3 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 1.6 kg Operating Mode: The actuator moves the damper to the operating position while tensioning the return spring. When the supply voltage is interrupted, the damper returns to the safety position using spring energy. Simple Direct Mounting: Easy mounting on the damper shaft with a universal shaft clamp and anti-rotation device. Adjustable Angle of Rotation: Mechanically adjustable with end stops. High Functional Reliability: Overload protection, no limit switches required, and automatic stop at the end stop. We offer all Belimo products. For more information and to explore our range, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£220.00
-
Belimo LF230-S (Commercial Biomass boiler fail-safe actuator)
This LF230-S Belimo fail-safe actuator is suitable for the following biomass boilers: WES E-Compact 55, 85, 100, 125, 150, 199 Trianco Greenflame 55, 85, 100, 125, 150, 199 WOODCO 215 Bioflame 55-199kW Woodsman 55-199kW Product no. 400717 Click here for the technical data PDF Introducing the LF230-S Rotary Actuator by Belimo, designed for efficient and reliable damper adjustment in technical building installations. This fail-safe actuator is ideal for air dampers up to approximately 0.8 m², ensuring optimal performance and safety. Electrical Data - Nominal Voltage: AC 240 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 85...265 V - Power Consumption in Operation: 3.5 W - Power Consumption in Rest Position: 2 W - Power Consumption for Wire Sizing: 6.5 VA (Imax 150 mA @ 10 ms) - Connection Supply / Control: Cable 1 m, 2x 0.75 mm² - Connection Auxiliary Switch: Cable 1 m, 3x 0.75 mm² - Parallel Operation: Yes (note the performance data) Functional Data - Torque Motor: 4 Nm - Torque Fail-Safe: 4 Nm - Direction of Motion Motor: Selectable by mounting L/R - Direction of Motion Fail-Safe: Selectable by mounting L/R - Manual Override: No - Angle of Rotation: Max. 95° (Adjustable 37...100% with integrated mechanical limitation) - Running Time Motor: 75 s / 90° - Running Time Fail-Safe: <20 s @ -20...50°C / <60 s @ -30°C - Sound Power Level: 50 dB(A) - Mechanical Interface: Universal shaft clamp 8...16 mm - Position Indication: Mechanical - Service Life: Min. 60,000 fail-safe positions Safety Data - Protection Class IEC/EN: II, reinforced insulation - Protection Class Auxiliary Switch IEC/EN: II, reinforced insulation - Degree of Protection IEC/EN: IP54 - EMC: CE according to 2014/30/EU - Low Voltage Directive: CE according to 2014/35/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission - Type of Action: Type 1.B - Rated Impulse Voltage Supply / Control: 4 kV - Rated Impulse Voltage Auxiliary Switch: 4 kV - Pollution Degree: 3 - Ambient Humidity: Max. 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 1.7 kg Operating Mode: The actuator moves the damper to the operating position while tensioning the return spring. When the supply voltage is interrupted, the damper returns to the safety position using spring energy. Simple Direct Mounting: Directly mountable on the damper shaft with a universal shaft clamp and an anti-rotation device to prevent actuator rotation. Adjustable Angle of Rotation: Features mechanical end stops for adjustable angle of rotation. High Functional Reliability: Overload protected, requires no limit switches, and automatically stops at the end stop. Flexible Signalling: Equipped with an adjustable auxiliary switch (0...100%). Accessories - Electrical Accessories: - Auxiliary Switch 2x SPDT S2A-F - Feedback Potentiometer 1 kΩ P1000A-F - Mechanical Accessories: - Shaft Extension 170 mm ø10 mm for damper shaft ø6...16 mm AV6-20 - Shaft Clamp Reversible, clamping range ø16...20 mm K6-1 - Ball Joint suitable for damper crank arm KH8 / KH10 KG10A - Ball Joint suitable for damper crank arm KH8 KG8 - Damper Crank Arm Slot width 8.2 mm, clamping range ø10...18 mm KH8 - Actuator Arm, clamping range ø8...16 mm, Slot width 8.2 mm KH-LF - Angle of Rotation Limiter, with end stop ZDB-LF - Form Fit Adapter 8x8 mm ZF8-LF - Mounting Kit for Linkage Operation for Flat Installation ZG-LF1 - Mounting Kit for Linkage Operation for Side Installation Slot width 6.2 mm ZG-LF3 - Anti-Rotation Mechanism 180 mm, Multipack 20 pcs. Z-ARS180L This actuator is designed for stationary heating, ventilation, and air-conditioning systems and must not be used outside its specified application field. It is suitable for outdoor use only if protected from (sea) water, snow, ice, insolation, or aggressive gases, ensuring that ambient conditions remain within specified thresholds. Installation must be carried out by authorised specialists following all applicable legal or institutional regulations. Our website offers all Belimo products. For more information and to explore our range, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626.
£250.00
-
Belimo LF24 Fail-Safe actuator
The Belimo LF24 Rotary Actuator is designed for adjusting dampers in technical building installations, providing reliable performance and enhanced functionality. Ideal for applications requiring precise control and safety, the LF24 is perfect for tradesmen and engineering companies looking to optimize their HVAC systems. Click here for the technical data PDF Nominal Voltage: AC/DC 24 V Control Type: Open/Close Air Damper Size Compatibility: Up to 0.8 m² Torque: 4 Nm Running Time (Motor): 75 seconds for 90° Fail-Safe Running Time: <20 seconds at -20...50°C / <60 seconds at -30°C Sound Power Level: 50 dB(A) Electrical Data Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V Power Consumption in Operation: 5 W Power Consumption in Rest Position: 2.5 W Power Consumption for Wire Sizing: 7 VA (Imax 5.8 A @ 5 ms) Connection Supply/Control: Cable 1 m, 2x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data Torque Motor: 4 Nm Torque Fail-Safe: 4 Nm Direction of Motion Motor: Selectable by mounting L/R Direction of Motion Fail-Safe: Selectable by mounting L/R Manual Override: No Angle of Rotation: Max. 95° (Adjustable 37...100% with integrated mechanical limitation) Mechanical Interface: Universal shaft clamp 8...16 mm Position Indication: Mechanical Service Life: Minimum 60,000 fail-safe positions Safety and Compliance Protection Class (IEC/EN): III, Safety Extra-Low Voltage (SELV) Degree of Protection (IEC/EN): IP54 EMC: CE according to 2014/30/EU Low Voltage Directive: CE according to 2014/35/EU Certification: IEC/EN 60730-1 and IEC/EN 60730-2-14 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01 Type of Action: Type 1.B Rated Impulse Voltage Supply/Control: 0.8 kV Pollution Degree: 3 Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 1.4 kg Electrical Accessories: Auxiliary switch 2x SPDT (Type: S2A-F) Feedback potentiometer 1 kΩ (Type: P1000A-F) Mechanical Accessories: Shaft extension 170 mm ø10 mm for damper shaft ø6...16 mm (Type: AV6-20) Shaft clamp reversible, clamping range ø16...20 mm (Type: K6-1) Ball joint suitable for damper crank arm KH8 / KH10 (Type: KG10A) Damper crank arm, Slot width 8.2 mm, clamping range ø10...18 mm (Type: KH8) Actuator arm, clamping range ø8...16 mm, Slot width 8.2 mm (Type: KH-LF) Angle of rotation limiter, with end stop (Type: ZDB-LF) Form fit adapter 8x8 mm (Type: ZF8-LF) Mounting kit for linkage operation for flat installation (Type: ZG-LF1) Mounting kit for linkage operation for side installation, Slot width 6.2 mm (Type: ZG-LF3) Anti-rotation mechanism 180 mm, Multipack 20 pcs. (Type: Z-ARS180L) Operating Mode: The actuator moves the damper to the operating position while tensioning the return spring. It returns to the safety position using spring energy when the supply voltage is interrupted. Simple Direct Mounting: Direct mounting on the damper shaft with a universal shaft clamp and anti-rotation device. High Functional Reliability: Overload protected, no limit switches required, stops automatically when the end stop is reached. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£202.00£141.40
-
Belimo LF24-S Damper Actuator
The Belimo LF24-S Rotary Actuator is a fail-safe actuator designed for adjusting dampers in technical building installations. It is suitable for air dampers up to approximately 0.8 m² and ensures reliable and efficient performance. With a robust torque motor, high functional reliability, and flexible signalling capabilities, the LF24-S is an ideal solution for HVAC applications. Click here for the technical data PDF Nominal Voltage: AC/DC 24 V Torque Motor: 4 Nm Control Type: Open/close Integrated Auxiliary Switch: Yes, with SPDT Manual Override: Not available Adjustable Angle of Rotation: Max. 95°, adjustable 37-100% High Functional Reliability: Overload protected, no limit switches required Electrical Data: Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2-28.8 V / DC 21.6-28.8 V Power Consumption in Operation: 5 W Power Consumption in Rest Position: 2.5 W Power Consumption for Wire Sizing: 7 VA (Imax 5.8 A @ 5 ms) Connection Supply / Control: Cable 1 m, 2x 0.75 mm² Connection Auxiliary Switch: Cable 1 m, 3x 0.75 mm² Parallel Operation: Yes Functional Data: Torque Fail-Safe: 4 Nm Direction of Motion Motor: Selectable by mounting L/R Direction of Motion Fail-Safe: Selectable by mounting L/R Angle of Rotation: Max. 95° Running Time Motor: 75 s / 90° Running Time Fail-Safe: <20 s @ -20...50°C / <60 s @ -30°C Sound Power Level, Motor: 50 dB(A) Mechanical Interface: Universal shaft clamp 8...16 mm Position Indication: Mechanical Service Life: Min. 60,000 fail-safe positions Safety Data: Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Protection Class Auxiliary Switch IEC/EN: II, reinforced insulation Degree of Protection IEC/EN: IP54 EMC: CE according to 2014/30/EU Low Voltage Directive: CE according to 2014/35/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission Type of Action: Type 1.B Rated Impulse Voltage Supply / Control: 0.8 kV Rated Impulse Voltage Auxiliary Switch: 2.5 kV Pollution Degree: 3 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 1.5 kg Electrical Accessories: Auxiliary switch 2x SPDT (Type: S2A-F), Feedback potentiometer 1 kΩ (Type: P1000A-F) Mechanical Accessories: Shaft extension 170 mm ø10 mm (Type: AV6-20), Shaft clamp reversible ø16...20 mm (Type: K6-1), Ball joint suitable for damper crank arm (Type: KH8 / KH10), Damper crank arm (Type: KH8), Actuator arm (Type: KH-LF) Mounting Kits: For linkage operation, flat installation (Type: ZG-LF1), side installation (Type: ZG-LF3) Anti-Rotation Mechanism: 180 mm, Multipack 20 pcs. (Type: Z-ARS180L) For more information and to explore our range of Belimo products, visit our website at [Eco Spares](https://ecospares.co.uk/collections/belimo). If you need any assistance, please get in touch with us on 01772 284 626.
£233.00£163.10
-
Belimo LF24-SR Damper Actuator
The LF24-SR Rotary Actuator by Belimo is a fail-safe actuator designed for adjusting dampers in technical building installations. This robust and reliable actuator is ideal for air damper sizes up to approximately 0.8 m². With a modulating control range of 2...10 V and position feedback capabilities, it ensures precise and efficient damper control, enhancing the overall performance of HVAC systems. Click here for the technical data PDF Electrical Data: - Nominal Voltage: AC/DC 24 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 19.2...28.8 V / DC 21.6...28.8 V - Power Consumption in Operation: 2.5 W - Power Consumption in Rest Position: 1 W - Power Consumption for Wire Sizing: 5 VA - Connection Supply / Control: Cable 1 m, 4x 0.75 mm² - Parallel Operation: Yes (note the performance data) Functional Data: - Torque Motor: 4 Nm - Torque Fail-Safe: 4 Nm - Operating Range Y: 2...10 V - Input Impedance: 100 kΩ - Position Feedback U: 2...10 V - Position Feedback U Note: Max. 0.7 mA - Position Accuracy: ±5% - Direction of Motion Motor: Selectable with switch L/R - Direction of Motion Fail-Safe: Selectable by mounting L/R - Manual Override: No - Angle of Rotation: Max. 95° - Angle of Rotation Note: Adjustable 37...100% with integrated mechanical limitation - Running Time Motor: 150 s / 90° - Running Time Fail-Safe: <20 s @ -20...50°C / <60 s @ -30°C - Sound Power Level, Motor: 30 dB(A) - Mechanical Interface: Universal shaft clamp 8...16 mm - Position Indication: Mechanical - Service Life: Min. 60,000 fail-safe positions Safety Data: - Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) - Degree of Protection IEC/EN: IP54 - EMC: CE according to 2014/30/EU - Low Voltage Directive: CE according to 2014/35/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission - Type of Action: Type 1 - Rated Impulse Voltage Supply / Control: 0.8 kV - Pollution Degree: 3 - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 1.5 kg Operating Mode: The actuator is connected with a standard control signal of 0...10 V and moves the damper to the operating position while tensioning the return spring. The damper returns to the fail-safe position by spring force when the supply voltage is interrupted. Simple Direct Mounting: Easy direct mounting on the damper shaft with a universal shaft clamp, including an anti-rotation device. Adjustable Angle of Rotation: Mechanically adjustable angle of rotation with integrated end stops. High Functional Reliability: The actuator is overload protected, requires no limit switches, and automatically stops when the end stop is reached. Additional Accessories: - Electrical Accessories: - Auxiliary switch 2x SPDT (Type: S2A-F) - Feedback potentiometer 1 kΩ (Type: P1000A-F) - Signal converter voltage/current 100 kΩ 4...20 mA, Supply AC/DC 24 V (Type: Z-UIC) - Positioners for various mounting types (Types: SGA24, SGE24, SGF24, CRP24-B1) - Mechanical Accessories: - Shaft extension 170 mm ø10 mm for damper shaft ø6...16 mm (Type: AV6-20) - Shaft clamp reversible, clamping range ø16...20 mm (Type: K6-1) - Ball joint suitable for damper crank arm (Types: KH8, KH10, KG10A, KG8) - Damper crank arm Slot width 8.2 mm, clamping range ø10...18 mm (Type: KH8) - Actuator arm, clamping range ø8...16 mm, Slot width 8.2 mm (Type: KH-LF) - Angle of rotation limiter, with end stop (Type: ZDB-LF) - Form fit adapter 8x8 mm (Type: ZF8-LF) - Mounting kits for linkage operation (Types: ZG-LF1, ZG-LF3) - Anti-rotation mechanism 180 mm, Multipack 20 pcs. (Type: Z-ARS180L) For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£272.00£190.40
-
Belimo LM230A Damper Actuator
The Belimo LM230A is a high-performance damper actuator designed for adjusting dampers in technical building installations. It is ideal for stationary heating, ventilation, and air-conditioning systems, providing reliable and efficient control. The LM230A ensures optimal performance and is suitable for air damper sizes up to approximately 1 m². Click here for the technical data PDF Nominal Voltage and Power Consumption: Nominal Voltage: AC 100...240 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 85...265 V Power Consumption in Operation: 1.5 W Power Consumption in Rest Position: 0.5 W Power Consumption for Wire Sizing: 3.5 VA Connection Supply / Control: Cable 1 m, 3x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data: Torque Motor: 5 Nm Direction of Motion Motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation) Manual Override: With push-button, can be locked Angle of Rotation: Max. 95° Angle of Rotation Note: Can be limited on both sides with adjustable mechanical end stops Running Time Motor: 150 s / 90° Sound Power Level: 35 dB(A) Mechanical Interface: Universal shaft clamp 6...20 mm Position Indication: Mechanical, pluggable Safety Data: Protection Class IEC/EN: II, reinforced insulation Protection Class UL: II, reinforced insulation Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 2 Enclosure UL: Enclosure Type 2 EMC: CE according to 2014/30/EU Low Voltage Directive: CE according to 2014/35/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low-emission Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 2.5 kV Pollution Degree: 3 Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.46 kg Simple Direct Mounting: It is easy to mount on the damper shaft with a universal shaft clamp. It includes an anti-rotation device to prevent actuator rotation. Manual Override: This is possible with a push-button disengaging the gear train. Adjustable Angle of Rotation: Adjustable with mechanical end stops for precision control. High Functional Reliability: An overload-protected actuator that requires no limit switches and automatically stops at the end stop. Electrical Accessories: Auxiliary switch 1x SPDT add-on (Type: S1A) Auxiliary switch 2x SPDT add-on (Type: S2A) Feedback potentiometer 140 Ω add-on (Type: P140A) Feedback potentiometer 1 kΩ add-on (Type: P1000A) Feedback potentiometer 10 kΩ add-on (Type: P10000A) Mechanical Accessories: Shaft extension 170 mm ø10 mm for damper shaft ø6...16 mm (Type: AV6-20) Shaft clamp one-sided, clamping range ø6...20 mm, Multipack 20 pcs. (Type: K-ELA) Shaft clamp one-sided, clamping range ø6...10 mm, Multipack 20 pcs. (Type: K-ELA10) Shaft clamp one-sided, clamping range ø6...13 mm, Multipack 20 pcs. (Type: K-ELA13) Shaft clamp one-sided, clamping range ø6...16 mm, Multipack 20 pcs. (Type: K-ELA16) Anti-rotation mechanism 180 mm, Multipack 20 pcs. (Type: Z-ARS180) Form fit insert 8x8 mm, Multipack 20 pcs. (Type: ZF8-LMA) Form fit insert 10x10 mm, Multipack 20 pcs. (Type: ZF10-LMA) Form fit insert 12x12 mm, Multipack 20 pcs. (Type: ZF12-LMA) Form fit insert 8x8 mm with angle of rotation limiter and position indication, Multipack 20 pcs. (Type: ZFRL8-LMA) Form fit insert 10x10 mm with angle of rotation limiter and position indication, Multipack 20 pcs. (Type: ZFRL10-LMA) Form fit insert 12x12 mm with angle of rotation limiter and position indication, Multipack 20 pcs. (Type: ZFRL12-LMA) Position indicator, Multipack 20 pcs. (Type: Z-PI) Wiring Colours: 1 = blue 2 = brown 3 = white Why You Should Buy High Efficiency: Low power consumption in both operation and rest position, ensuring energy savings. Durability: Reinforced insulation and high degree of protection against environmental factors. Easy Installation: Simple direct mounting and adjustable features make installation straightforward. Reliability: High functional reliability and maintenance-free design. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us on 01772 284 626. Would you like a list of keywords for digital marketing, guiding content creation, PPC campaigns to attract targeted audiences, and enhancing ad reach on platforms like Google Ads? This list will include both long and short-tail keywords to improve your product visibility and inform social media hashtags.
£130.00£91.00
-
Belimo LM24A Damper Actuator
The Belimo LM24A is a robust and efficient damper actuator designed for adjusting dampers in technical building installations. Suitable for air dampers up to approximately 1 m², this actuator ensures optimal airflow and ventilation control in various applications. Click here for the technical data PDF Simple Direct Mounting: Easily mounts on the damper shaft with a universal shaft clamp, supplied with an anti-rotation device to prevent actuator rotation. Manual Override: Manual override with a push-button is possible; the gear train is disengaged for as long as the button is pressed or remains locked. Adjustable Angle of Rotation: Angle of rotation can be adjusted with mechanical end stops. High Functional Reliability: The actuator is overload protected, requires no limit switches, and automatically stops when the end stop is reached. Electrical Data: Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V Power Consumption in Operation: 1 W Power Consumption in Rest Position: 0.2 W Power Consumption for Wire Sizing: 1.5 VA Connection Supply / Control: Cable 1 m, 3x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data: Torque Motor: 5 Nm Direction of Motion Motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation) Manual Override: Push-button, can be locked Angle of Rotation: Max. 95° Angle of Rotation Note: Can be limited on both sides with adjustable mechanical end stops Running Time Motor: 150 s / 90° Sound Power Level, Motor: 35 dB(A) Mechanical Interface: Universal shaft clamp 6...20 mm Position Indication: Mechanical, pluggable Safety Data: Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Power Source UL: Class 2 Supply Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 2 Enclosure UL: Enclosure Type 2 EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low-emission Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 3 Environmental Data: Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.46 kg Electrical Accessories: Auxiliary switch 1x SPDT add-on (Type: S1A) Auxiliary switch 2x SPDT add-on (Type: S2A) Feedback potentiometer 140 Ω add-on (Type: P140A) Feedback potentiometer 1 kΩ add-on (Type: P1000A) Feedback potentiometer 10 kΩ add-on (Type: P10000A) Mechanical Accessories: Shaft extension 170 mm ø10 mm for damper shaft ø6...16 mm (Type: AV6-20) Shaft clamps (Types: K-ELA, K-ELA10, K-ELA13, K-ELA16) Anti-rotation mechanism 180 mm (Type: Z-ARS180) Form fit inserts (Types: ZF8-LMA, ZF10-LMA, ZF12-LMA) Position indicator (Type: Z-PI) Notes: This device is designed for heating, ventilation, and air-conditioning systems. It must not be used outside the specified field of application, especially in aircraft or any other airborne means of transport. For outdoor applications, ensure no (sea) water, snow, ice, insolation, or aggressive gases interfere directly with the device, and ambient conditions remain within the thresholds according to the datasheet at all times. Our website offers all Belimo products. For more information and to explore our range, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please call us at 01772 284 626.
£130.00£91.00
-
Belimo LM24A-S Damper Actuator
The Belimo LM24A-S damper actuator is a robust and reliable solution designed for adjusting dampers in technical building installations. Ideal for air dampers up to approximately 1 m², this actuator ensures precise control and high performance in HVAC applications. With a torque of 5 Nm and versatile control options, it meets various operational requirements with ease. Click here for the technical data PDF Electrical Data - Nominal Voltage: AC/DC 24 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V - Power Consumption in Operation: 1 W - Power Consumption in Rest Position: 0.2 W - Power Consumption for Wire Sizing: 1.5 VA - Connection Supply / Control: Cable 1 m, 3x 0.75 mm² - Parallel Operation: Yes (note the performance data) - Auxiliary Switch: 1x SPDT, 0...100% - Switching Capacity of Auxiliary Switch: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V Functional Data - Torque Motor: 5 Nm - Direction of Motion Motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation) - Manual Override: With push-button, can be locked - Angle of Rotation: Max. 95° - Running Time Motor: 150 s / 90° - Sound Power Level, Motor: 35 dB(A) - Mechanical Interface: Universal shaft clamp 6...20 mm - Position Indication: Mechanical, pluggable Safety Data - Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) - Power Source UL: Class 2 Supply - Protection Class Auxiliary Switch IEC/EN: II, reinforced insulation - Degree of Protection IEC/EN: IP54 - Degree of Protection NEMA/UL: NEMA 2 - Enclosure UL Enclosure: Type 2 - EMC: CE according to 2014/30/EU - Low Voltage Directive: CE according to 2014/35/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission Environmental Data - Type of Action: Type 1.B - Rated Impulse Voltage Supply / Control: 0.8 kV - Rated Impulse Voltage Auxiliary Switch: 2.5 kV - Pollution Degree: 3 - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 0.54 kg Product Features - Simple Direct Mounting: Universal shaft clamp for easy installation on damper shafts. - Manual Override: Push-button allows manual operation when needed. - Adjustable Angle of Rotation: Mechanical end stops for precise angle settings. - High Functional Reliability: Overload protection with automatic stop at end position. - Flexible Signalling: Adjustable auxiliary switch for versatile signal configurations. Additional accesories: - Electrical Accessories: - Auxiliary Switch 1x SPDT Add-on (S1A) - Auxiliary Switch 2x SPDT Add-on (S2A) - Feedback Potentiometer 140 Ω Add-on (P140A) - Feedback Potentiometer 1 kΩ Add-on (P1000A) - Feedback Potentiometer 10 kΩ Add-on (P10000A) - Mechanical Accessories: - Shaft Extension 170 mm ø10 mm for damper shaft ø6...16 mm (AV6-20) - Shaft Clamp one-sided, clamping range ø6...20 mm, Multipack 20 pcs. (K-ELA) - Anti-rotation Mechanism 180 mm, Multipack 20 pcs. (Z-ARS180) - Form Fit Inserts in various sizes (ZF8-LMA, ZF10-LMA, ZF12-LMA, etc.) - Position Indicator, Multipack 20 pcs. (Z-PI) Why You Should Buy The Belimo LM24A-S damper actuator is an essential component for any HVAC system, offering precise control, reliability, and ease of installation. Its versatile features and high-quality construction ensure optimal performance, making it a valuable investment for any technical building installation. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£147.00£102.90
-
Belimo LM24A-SR rotary actuator
The Belimo LM24A-SR is a high-performance modulating damper actuator designed for precise control and adjustment of dampers in technical building installations. This actuator ensures optimal airflow regulation in HVAC systems, enhancing both efficiency and comfort. Suitable for air damper sizes up to approximately 1 m², the LM24A-SR is a reliable choice for a wide range of applications. Click here for the technical data PDF Electrical Data: Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V Power Consumption in Operation: 1 W Power Consumption in Rest Position: 0.4 W Power Consumption for Wire Sizing: 2 VA Connection Supply / Control: Cable 1 m, 4x 0.75 mm² Parallel Operation: Yes (note the performance data) Functional Data: Torque Motor: 5 Nm Operating Range Y: 2...10 V Input Impedance: 100 kΩ Position Feedback U: 2...10 V Position Feedback U Note: Max. 1 mA Position Accuracy: ±5% Direction of Motion Motor: Selectable with switch 0/1 Direction of Motion Note: Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation) Manual Override: With push-button, can be locked Angle of Rotation: Max. 95° Angle of Rotation Note: Can be limited on both sides with adjustable mechanical end stops Running Time Motor: 150 s / 90° Sound Power Level, Motor: 35 dB(A) Mechanical Interface: Universal shaft clamp 6...20 mm Position Indication: Mechanical, pluggable Safety Data: Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Power Source UL: Class 2 Supply Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 2 Enclosure UL: Enclosure Type 2 EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low-emission Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 3 Ambient Humidity Max.: 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.47 kg Why You Should Buy the Belimo LM24A-SR Precision Control: With its modulating control signal of 0...10 V, the LM24A-SR ensures accurate and reliable adjustment of damper positions, contributing to optimal HVAC system performance. Energy Efficiency: The actuator's low power consumption in both operation (1 W) and rest position (0.4 W) helps reduce overall energy usage, supporting sustainability goals. Robust and Reliable: The actuator features a high protection class (IP54) and is certified to meet stringent standards, ensuring durability and reliability in various environments. Ease of Installation: The LM24A-SR is designed for simple direct mounting on the damper shaft with a universal shaft clamp, making installation straightforward and hassle-free. Maintenance-Free: This actuator is designed for high functional reliability and requires no regular maintenance, saving time and reducing operational costs. Electrical Accessories: Auxiliary switch (1x SPDT or 2x SPDT add-on) Feedback potentiometer (140 Ω, 1 kΩ, 10 kΩ add-on) Signal converter voltage/current (100 kΩ 4...20 mA, Supply AC/DC 24 V) Range controller for wall mounting Positioner for wall mounting, built-in mounting, or front-panel mounting Mechanical Accessories: Shaft extension Shaft clamp (various sizes) Anti-rotation mechanism Form fit insert (various sizes) Position indicator For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us.
£173.00£121.10
-
Belimo LR230A actuator for ball valves
The Belimo LR230A Rotary Actuator, designed specifically for ball valves, provides precise control and reliable performance in HVAC systems. This actuator is engineered for efficiency and durability, making it the ideal choice for tradesmen and engineering companies. Click here for the technical data PDF Simple Direct Mounting: Straightforward, direct mounting on the ball valve with a central screw. The assembly tool is integrated into the plug-in position indication. Manual Override: Manual override with a push-button is possible. The button disengages the gear train for as long as it is pressed or remains locked. Adjustable Angle of Rotation: Adjustable angle of rotation with mechanical end stops. High Functional Reliability: Overload protection eliminates the need for limit switches and automatically stops when the end stop is reached. Electrical Data: Nominal Voltage: AC 100...240 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 85...265 V Power Consumption in Operation: 2 W Power Consumption in Rest Position: 0.5 W Power Consumption for Wire Sizing: 4 VA Connection Supply / Control: Cable 1 m, 3x 0.75 mm² Parallel Operation: Yes Functional Data: Torque Motor: 5 Nm Manual Override: With push-button, can be locked Running Time Motor: 90 s / 90° Sound Power Level, Motor: 35 dB(A) Position Indication: Mechanical, pluggable Safety Data: Protection Class IEC/EN: II, reinforced insulation Protection Class UL: II, reinforced insulation Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 2 Enclosure UL: Enclosure Type 2 EMC: CE according to 2014/30/EU Low Voltage Directive: CE according to 2014/35/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 2.5 kV Pollution Degree: 3 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.47 kg Accessories: Auxiliary Switch 1x SPDT Add-on: S1A Auxiliary Switch 2x SPDT Add-on: S2A Feedback Potentiometer 140 Ω Add-on: P140A Feedback Potentiometer 1 kΩ Add-on: P1000A Feedback Potentiometer 10 kΩ Add-on: P10000A Wire Colours: 1 = Blue 2 = Brown 3 = White Electrical Installation: Parallel connection of other actuators is possible, but observe performance data. Direction of Rotation Switch: Covered, with factory setting for direction of rotation Y2. Safety Notes: Device designed for stationary HVAC systems. Must be installed by authorised specialists following all applicable regulations. Device may only be opened by the manufacturer. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo). If you need any assistance, please get in touch with us on 01772 284 626.
£145.00£101.50
-
Belimo LR24A rotary actuator
The Belimo LR24A Rotary Actuator is an advanced solution designed for efficient and reliable operation of ball valves. Engineered for stationary heating, ventilation, and air-conditioning systems, this actuator ensures precise control and high functional reliability. Perfect for tradesmen and engineering companies, it provides an ideal balance of performance and ease of use. Simple Direct Mounting: Easy installation with only one central screw. The integrated assembly tool in the plug-in position indication allows for straightforward mounting in 90° steps relative to the ball valve. Manual Override: Features a manual override with a push-button that disengages the gear train while pressed or locked. Adjustable Angle of Rotation: Mechanical end stops allow for adjustable rotation angles. High Functional Reliability: Overload protection, no need for limit switches, and automatic stopping at end stops ensure long-term reliability. Electrical Data Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V Power Consumption in Operation: 1.5 W Power Consumption in Rest Position: 0.2 W Power Consumption for Wire Sizing: 2 VA Connection Supply / Control: Cable 1 m, 3x 0.75 mm² Parallel Operation: Yes (observe performance data) Functional Data Torque Motor: 5 Nm Manual Override: With push-button, lockable Running Time Motor: 90 s / 90° Sound Power Level, Motor: 35 dB(A) Position Indication: Mechanical, pluggable Safety Data Protection Class IEC/EN: III, Safety Extra-Low Voltage (SELV) Power Source UL: Class 2 Supply Degree of Protection IEC/EN: IP54 Degree of Protection NEMA/UL: NEMA 2 Enclosure UL: Enclosure Type 2 EMC: CE according to 2014/30/EU Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1 Additional Technical Data Type of Action: Type 1 Rated Impulse Voltage Supply / Control: 0.8 kV Pollution Degree: 3 Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -30...50°C [-22...122°F] Storage Temperature: -40...80°C [-40...176°F] Servicing: Maintenance-free Weight: 0.47 kg Accessories Auxiliary Switch: 1x SPDT add-on S1A 2x SPDT add-on S2A Feedback Potentiometer: 140 Ω add-on P140A 1 kΩ add-on P1000A 10 kΩ add-on P10000A Installation: This must be carried out by authorised specialists. Compliance with all legal or institutional installation regulations is mandatory. Environmental Conditions: It is suitable for outdoor use only if protected from direct exposure to water, snow, ice, and aggressive gases. Ensure ambient conditions remain within specified thresholds. Disposal: Contains electrical and electronic components and must be disposed of according to local regulations. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us on 01772 284 626
£145.00£101.50
You have seen 96 out of 250 products
