Description
Introducing the high-quality Stainless Steel Thermowell, designed for seamless integration with immersion and cable temperature sensors, including models 01DT.., 22DT.., 01CT.., and 22CT.. This thermowell offers superior durability and precision, making it ideal for various applications in various industrial environments.
Click here for the technical data PDF
Parts Included
- Stainless Steel Thermowell
- Integrated Compression Fitting
- G 1/2" External Thread
Crafted from premium stainless steel, this thermowell ensures long-lasting performance and reliability. Its G 1/2" external thread and integrated compression fitting simplify installation, ensuring a secure and leak-proof connection.
Material Composition:
- Probe Material: Stainless Steel
- Turned Part: V4A (1.4404)
- Pipe: V4A (1.4571)
- Pressure Screw: Polyamide (PA66/GF25)
Application: Suitable for water and water-glycol mixture applications.
- Pressure Rating: PN 40
- Temperature Range: Capable of handling fluid temperatures up to a maximum of 200°C.
- Quality Standard: ISO 9001 certified.

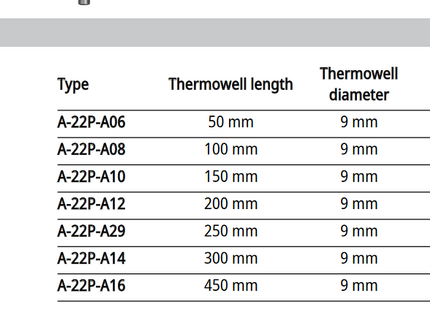

| Type | Length | Diameter | Max. Flow | Weight |
| A-22P-A06 | 50 mm | 9 mm | 29.5 m/s | 0.065 kg |
| A-22P-A08 | 100 mm | 9 mm | 13.6 m/s | 0.075 kg |
| A-22P-A10 | 150 mm | 9 mm | 8.7 m/s | 0.085 kg |
| A-22P-A12 | 200 mm | 9 mm | 5.4 m/s | 0.095 kg |
| A-22P-A29 | 250 mm | 9 mm | 4.5 m/s | 0.10 kg |
| A-22P-A14 | 300 mm | 9 mm | 2.4 m/s | 0.11 kg |
| A-22P-A16 | 450 mm | 9 mm | 1.0 m/s | 0.14 kg |
Why You Should Buy This Thermowell
Durability: Constructed from high-grade stainless steel, this thermowell offers exceptional resistance to corrosion and wear, ensuring long-term reliability.
Easy Installation: The G 1/2" external thread and integrated compression fitting make installation straightforward and secure, reducing downtime and maintenance efforts.
Versatility: Designed for use with a variety of immersion and cable temperature sensors, making it a versatile choice for different industrial applications.
High-Performance: With a pressure rating of PN 40 and a fluid temperature capacity of up to 200°C, this thermowell meets the demands of rigorous industrial environments.
Compliance: Meets ISO 9001 standards, ensuring high quality and performance.
Accessories
- Optional temperature sensors compatible with models 01DT.., 22DT.., 01CT.., 22CT..
Notes
- Ensure compatibility with your existing sensors and systems before installation.
- For optimal performance, regular maintenance and checks are recommended.
For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626
