R3040-S3

Description

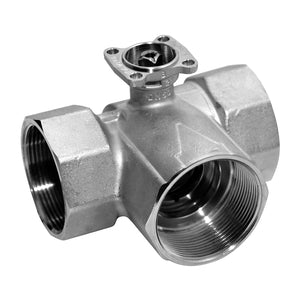

Changeover ball valve, 3-way, DN 40, Internal thread, Rp 1 1/2", PN 25, ps 1600 kPa, Kvs 31 m³/h, Fluid temperature -10...120°C [14...248°F]



Functional data

  • Fluid Water, water with glycol up to max. 50% vol.
  • Fluid temperature -10...120°C [14...248°F]
  • Fluid temperature note At a fluid temperature of -10...2°C, a spindle heater or a valve neck extension is recommended.
  • The allowed fluid temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators.
  • Close-off pressure ∆ps 1400 kPa
  • Differential pressure Δpmax 1000 kPa
  • Differential pressure note 200 kPa for low-noise operation
  • Flow Bypass B – AB: approx. 50% of Kvs value
  • Leakage rate Port A – AB: air-bubble tight, leakage rate A
    (EN 12266-1); Bypass B – AB: Leakage class I
    (EN 1349 and EN 60534-4) max. 1% of the Kvs value
  • Angle of rotation 90°
  • Pipe connection Internal thread according to ISO 7-1

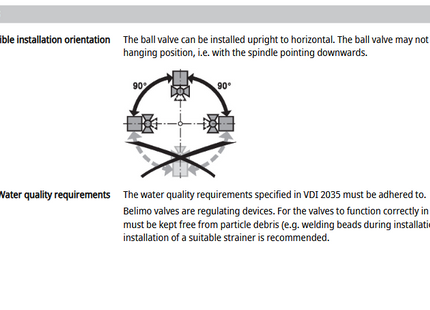

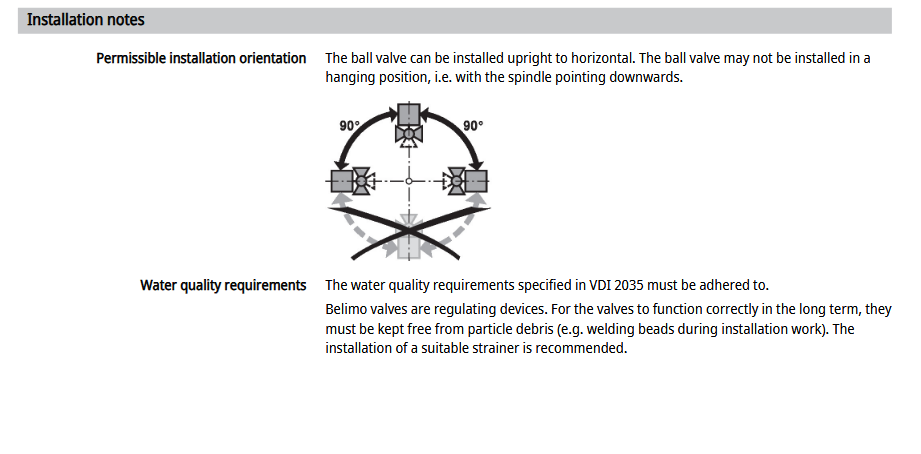

  • Installation orientation upright to horizontal (in relation to the spindle)

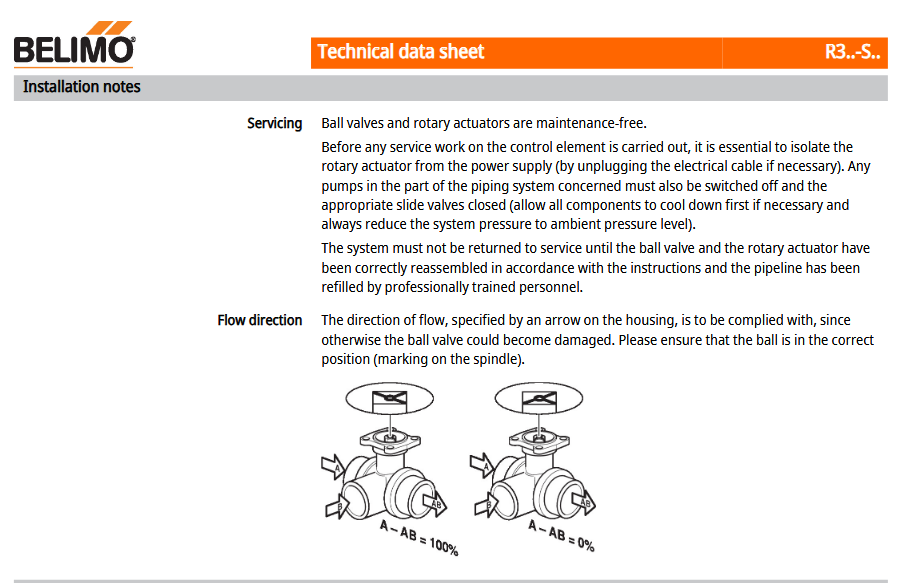

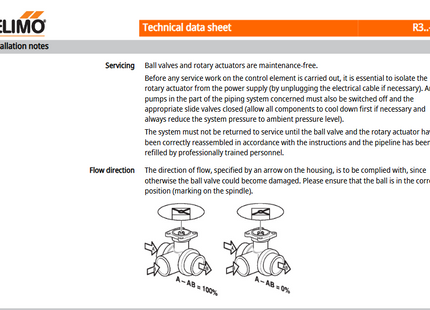

  • Servicing maintenance-free
Product form

Changeover ball valve, 3-way, DN 40, Internal thread, Rp 1 1/2", PN 25, ps 1600 kPa, Kvs 31 m³/h, Fluid... Read more

SKU: R3040-S3

£332.00£232.40 Excl. VAT £278.88 Incl. VAT

  • Fast UK Shipping
  • Genuine manufacturer parts
  • Free Technical Support
  • 01772 284 626

      Description

      Changeover ball valve, 3-way, DN 40, Internal thread, Rp 1 1/2", PN 25, ps 1600 kPa, Kvs 31 m³/h, Fluid temperature -10...120°C [14...248°F]



      Functional data

      • Fluid Water, water with glycol up to max. 50% vol.
      • Fluid temperature -10...120°C [14...248°F]
      • Fluid temperature note At a fluid temperature of -10...2°C, a spindle heater or a valve neck extension is recommended.
      • The allowed fluid temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators.
      • Close-off pressure ∆ps 1400 kPa
      • Differential pressure Δpmax 1000 kPa
      • Differential pressure note 200 kPa for low-noise operation
      • Flow Bypass B – AB: approx. 50% of Kvs value
      • Leakage rate Port A – AB: air-bubble tight, leakage rate A
        (EN 12266-1); Bypass B – AB: Leakage class I
        (EN 1349 and EN 60534-4) max. 1% of the Kvs value
      • Angle of rotation 90°
      • Pipe connection Internal thread according to ISO 7-1
      • Installation orientation upright to horizontal (in relation to the spindle)
      • Servicing maintenance-free
