Description

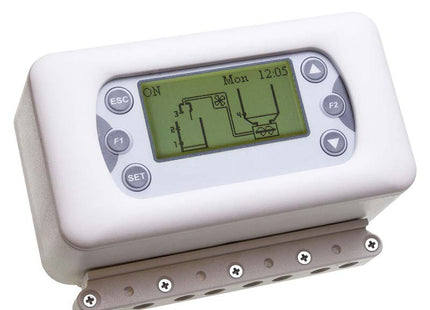

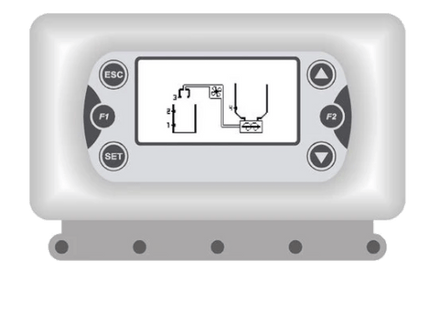

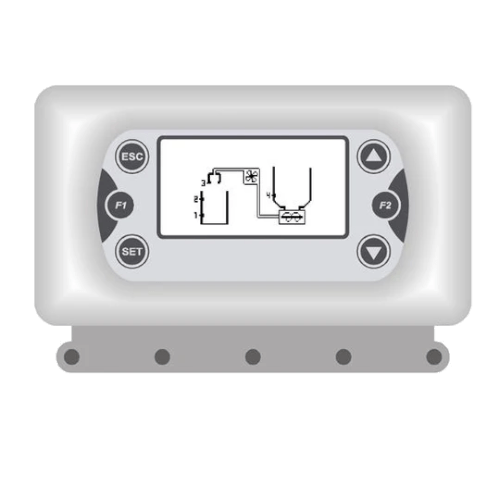

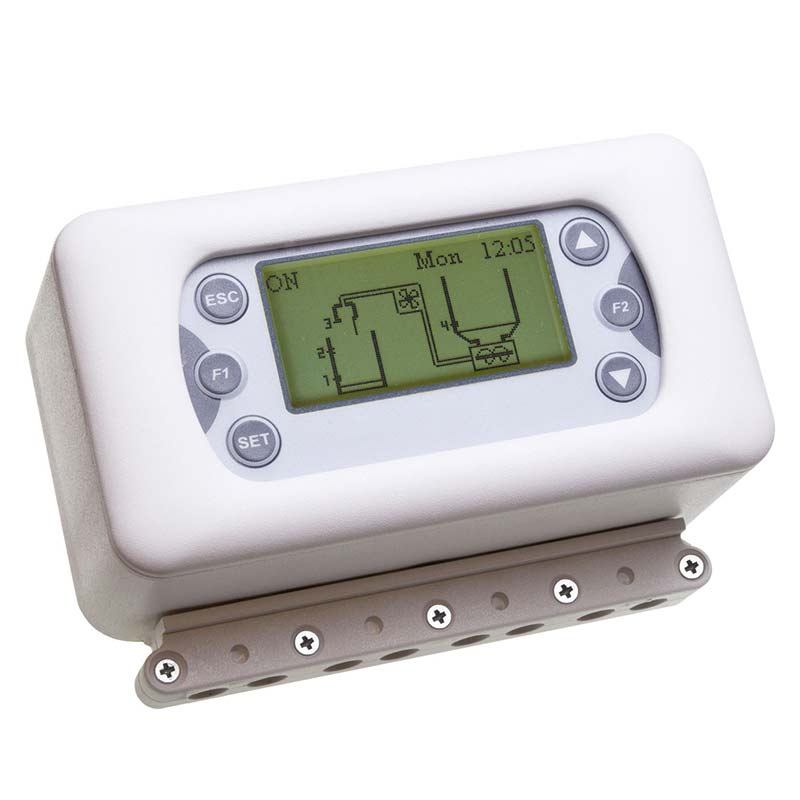

Loader500 is an electronic controller that allows to manage filling and loading systems for biomass wood pellets with the highest efficiency and precision. By using level and proximity sensors, it controls the devices of the plant, allowing you to set their parameters and optimise their functioning.
Often used on Woodco, WES, Trianco, and Greenflame boilers (but also others).
Inputs connected and monitored:
– Material Level Sensor (up to 4)
– Position Sensors
– Contact/LimitSwitch
Outputs connected for the devices control:
– Auger Loading Motors
– Extractors Motors
– Alarms
| Supply Voltage |
230 / 115 Vac 50 / 60 Hz |
| Level Sensors |
N.4 TTL Out – On/Off – NPN/PNP |
| Outputs to control |
N° 4 On/Off 5A 250 Vac |
| Dimensions |
Inbox 4 modules/External 142x94x60 mm |
| Dysplay |
LCD 128×64 Backlight |
