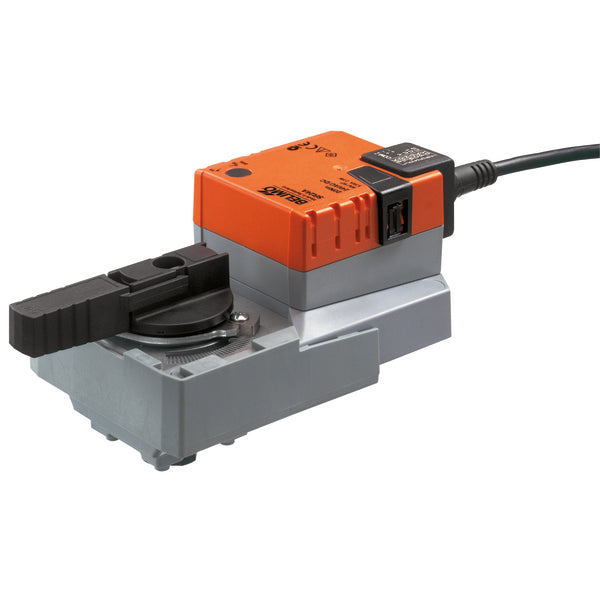

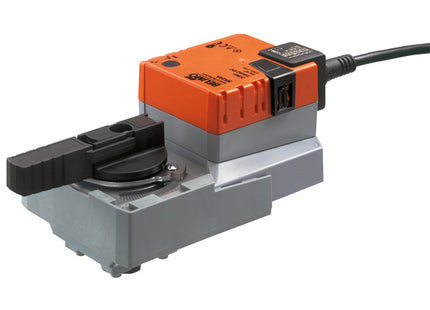

Belimo SR24A

Description

Electrical data

  • Nominal voltage AC/DC 24 V
  • Nominal voltage frequency 50/60 Hz
  • Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
  • Power consumption in operation 2.5 W
  • Power consumption in rest position 0.2 W
  • Power consumption for wire sizing 5.5 VA

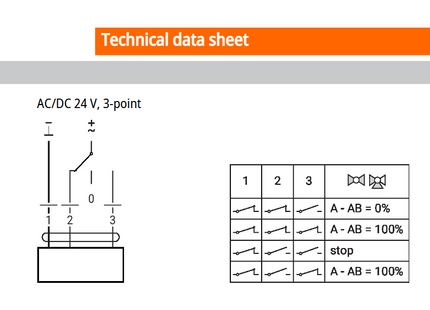

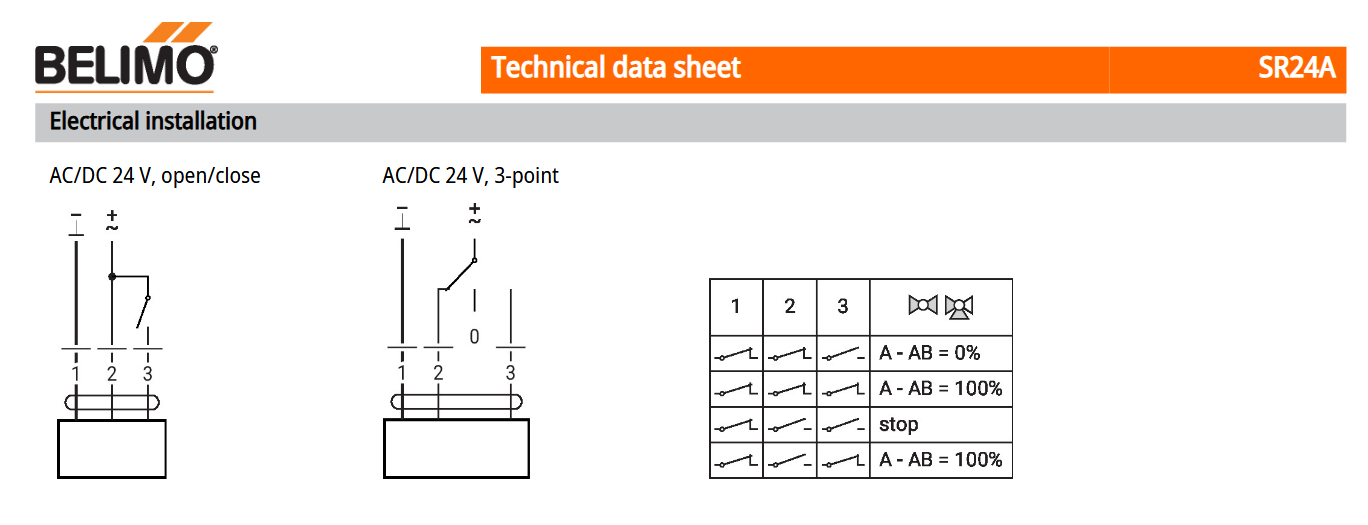

  • Connection supply / control Cable 1 m, 3x 0.75 mm²
  • Parallel operation Yes (note the performance data)


Functional data

  • Torque motor 20 Nm
  • Manual override with push-button, can be locked
  • Running time motor 90 s / 90°
  • Sound power level, motor 45 dB(A)
  • Position indication Mechanical, pluggable


Safety data

  • Protection class IEC/EN III, Safety Extra-Low Voltage (SELV)
  • Power source UL Class 2 Supply
  • Degree of protection IEC/EN IP54
  • Degree of protection NEMA/UL NEMA 2
  • Housing UL Enclosure Type 2
  • EMC CE according to 2014/30/EU
  • Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • UL Approval cULus according to UL60730-1A, UL60730-2-1 and CAN/CSA E60730-1
  • The UL marking on the actuator depends on the production site, the device is UL-compliant in any case
  • Type of action Type 1
  • Rated impulse voltage supply / control 0.8 kV
  • Pollution degree 3
  • Ambient humidity Max. 95% RH, non-condensing
  • Ambient temperature -30...50°C [-22...122°F]
  • Storage temperature -40...80°C [-40...176°F]
  • Servicing maintenance-free
  • Weight 0.98 kg

Product form

Electrical data Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Nominal voltage range AC 19.2...28.8 V / DC... Read more

SKU: SR24A
Barcode: SR24A

£222.00£155.30 Excl. VAT £186.36 Incl. VAT

  • Fast UK Shipping
  • Genuine manufacturer parts
  • Free Technical Support
  • 01772 284 626

      Description

      Electrical data

      • Nominal voltage AC/DC 24 V
      • Nominal voltage frequency 50/60 Hz
      • Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
      • Power consumption in operation 2.5 W
      • Power consumption in rest position 0.2 W
      • Power consumption for wire sizing 5.5 VA
      • Connection supply / control Cable 1 m, 3x 0.75 mm²
      • Parallel operation Yes (note the performance data)


      Functional data

      • Torque motor 20 Nm
      • Manual override with push-button, can be locked
      • Running time motor 90 s / 90°
      • Sound power level, motor 45 dB(A)
      • Position indication Mechanical, pluggable


      Safety data

      • Protection class IEC/EN III, Safety Extra-Low Voltage (SELV)
      • Power source UL Class 2 Supply
      • Degree of protection IEC/EN IP54
      • Degree of protection NEMA/UL NEMA 2
      • Housing UL Enclosure Type 2
      • EMC CE according to 2014/30/EU
      • Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
      • UL Approval cULus according to UL60730-1A, UL60730-2-1 and CAN/CSA E60730-1
      • The UL marking on the actuator depends on the production site, the device is UL-compliant in any case
      • Type of action Type 1
      • Rated impulse voltage supply / control 0.8 kV
      • Pollution degree 3
      • Ambient humidity Max. 95% RH, non-condensing
      • Ambient temperature -30...50°C [-22...122°F]
      • Storage temperature -40...80°C [-40...176°F]
      • Servicing maintenance-free
      • Weight 0.98 kg
