Description

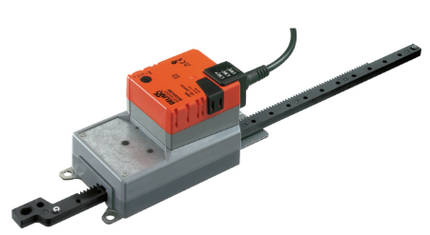

Linear actuator for adjusting dampers and slide valves in technical building installations
• Air damper size up to approx. 3 m²
• Actuating force 450 N
• Nominal voltage AC 100...240 V
• Control Open/close, 3-point
• Length of Stroke Max. 300 mm, adjustable in 20 mm increments
Electrical data
- Nominal voltage AC 100...240 V
- Nominal voltage frequency 50/60 Hz
- Nominal voltage range AC 85...265 V
- Power consumption in operation 3 W
- Power consumption in rest position 0.6 W
- Power consumption for wire sizing 7 VA
- Connection supply / control Cable 1 m, 3x 0.75 mm²
- Parallel operation Yes (note the performance data)
Product features
- Simple direct mounting. The actuator can be directly connected to the application using the enclosed screws. The head of the gear rod is connected to the moving part of the ventilating application individually on the mounting side or with the Z-KS1 coupling piece provided for this purpose.
- Manual override Manual override with push-button possible (the gear train is disengaged for as long as the button is pressed or remains locked).
- Adjustable stroke. If a stroke limitation is adjusted, the operating range on this side of the gear rod can be used, starting with an extension length of 20 mm, and then limited in increments of 20 mm by the mechanical end stops Z-AS1.
- High functional reliability. The actuator is overload-protected, requires no limit switches, and automatically stops when the end stop is reached.
Mechanical accessories
End stop kit, Multipack 20 pcs. Z-AS1
Rotary support, for linear actuator, for compensation of transverse forces - Z-DS1
Coupling piece M8 - Z-KS1
Functional data Actuating force motor 450 N
- Direction of motion motor selectable with switch 0 (extended) /1 (retracted)
- Manual override with push-button can be locked
- Stroke 300 mm
- Length of Stroke Max. 300 mm, adjustable in 20 mm increments
- Stroke limitation can be limited on both sides with mechanical end stops
- Running time motor 150 s / 100 mm
- Sound power level, motor 52 dB(A)
