Description
Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 90 s, 1x SPDT, IP54

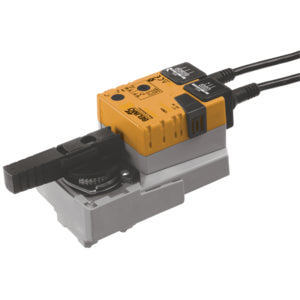

The Belimo NR230A-S Rotary Actuator is designed to control ball valves in HVAC systems precisely. It is engineered to deliver optimal performance and offers robust torque, efficient power consumption, and high reliability, making it ideal for tradesmen and engineering companies seeking efficient control solutions for heating, ventilation, and air-conditioning applications.
For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please contact us on 01772 284 626.

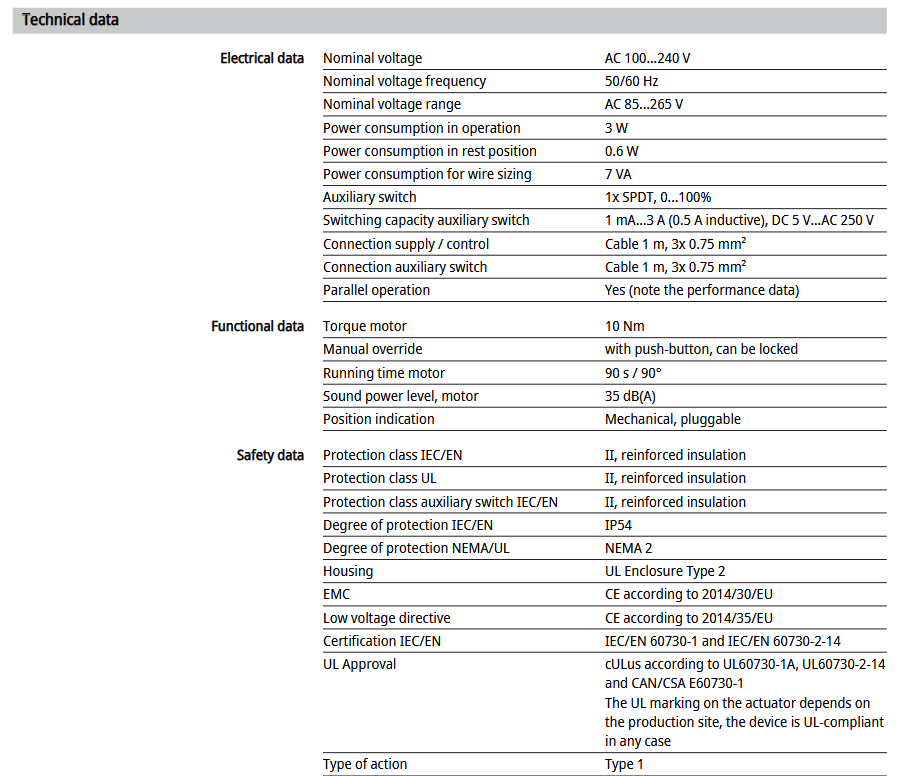

Electrical data
- Nominal voltage AC 100...240 V
- Nominal voltage frequency 50/60 Hz
- Nominal voltage range AC 85...265 V
- Power consumption in operation 3 W
- Power consumption in rest position 0.6 W
- Power consumption for wire sizing 7 VA
- Auxiliary switch 1x SPDT, 0...100%
- Switching capacity auxiliary switch 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V
- Connection supply / control Cable 1 m, 3x 0.75 mm²
- Connection auxiliary switch Cable 1 m, 3x 0.75 mm²
- Parallel operation Yes (note the performance data)
Functional data
- Torque motor 10 Nm
- Manual override with push-button, can be locked
- Running time motor 90 s / 90°
- Sound power level, motor 35 dB(A)
- Position indication Mechanical, pluggable
Why You Should Buy
The Belimo NR230A-S Rotary Actuator is perfect for those looking to enhance their HVAC systems with reliable and efficient control. Its robust design, coupled with advanced features such as selectable motion direction and manual override, ensures precise control and long-term reliability. Certified by leading regulatory bodies, this actuator meets the highest safety and performance standards, making it an excellent choice for professionals in the engineering and HVAC industries.
For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626
