Belimo TF230 damper actuator
The Belimo TF230 is a high-performance rotary actuator designed for fail-safe adjustment of air dampers in technical building installations. Engineered for reliability and efficiency, this actuator is ideal for HVAC applications, providing precise control and enhanced safety features. Click here for the technical data PDF Electrical Data: - Nominal Voltage: AC 100...240 V - Nominal Voltage Frequency: 50/60 Hz - Nominal Voltage Range: AC 85...265 V - Power Consumption in Operation: 2.5 W - Power Consumption in Rest Position: 1.5 W - Power Consumption for Wire Sizing: 5 VA - Connection Supply/Control: Cable 1 m, 2x 0.75 mm² - Parallel Operation: Yes (note the performance data) Functional Data: - Torque Motor: 2.5 Nm - Torque Fail-Safe: 2.5 Nm - Direction of Motion Motor: Selectable by mounting L/R - Direction of Motion Fail-Safe: Selectable by mounting L/R - Manual Override: No - Angle of Rotation: Max. 95° - Angle of Rotation Note: Adjustable starting at 37% in 2.5% steps (with mechanical end stop) - Running Time Motor: 75 s / 90° - Running Time Fail-Safe: <25 s / 90° - Sound Power Level, Motor: 50 dB(A) - Mechanical Interface: Universal shaft clamp 6...12.7 mm - Position Indication: Mechanical - Service Life: Min. 60,000 fail-safe positions Safety Data: - Protection Class IEC/EN: II, reinforced insulation - Degree of Protection IEC/EN: IP42 - EMC: CE according to 2014/30/EU - Low Voltage Directive: CE according to 2014/35/EU - Certification IEC/EN: IEC/EN 60730-1 and IEC/EN 60730-2-14 - Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission - Type of Action: Type 1.AA - Overvoltage Category: III - Rated Impulse Voltage Supply/Control: 4 kV - Pollution Degree: 3 - Ambient Humidity Max.: 95% RH, non-condensing - Ambient Temperature: -30...50°C [-22...122°F] - Storage Temperature: -40...80°C [-40...176°F] - Servicing: Maintenance-free - Weight: 0.62 kg Fail-Safe Operation: The actuator moves the damper to the operating position while tensioning the return spring. In case of supply voltage interruption, the damper returns to the safety position via spring energy. Simple Direct Mounting: Universal shaft clamp with anti-rotation device ensures easy installation and secure operation. Adjustable Angle of Rotation: Mechanical end stops allow for precise adjustment. Overload Protection: The actuator is protected against overload and requires no limit switches, stopping automatically at the end stop. Accessories: - Actuator Arm: AH-TF - Shaft Extension: 170 mm ø10 mm for damper shaft ø6...16 mm AV6-20 - Ball Joint: Suitable for damper crank arm KH8 / KH10 KG10A, KG8 - Damper Crank Arm: Slot width 8.2 mm, clamping range ø10...18 mm KH8 - Screw Fastening Kit: SB-TF - Angle of Rotation Limiter: With end stop ZDB-TF - Form Fit Adapter: 8x8 mm ZF8-TF - Mounting Kit: For linkage operation for flat and side installation ZG-TF1 - Anti-Rotation Mechanism: 180 mm, Multipack 20 pcs. Z-ARS180 Additional Notes: - Wire Colours: 1 = blue, 2 = brown - Caution: Ensure power supply voltage is correct. Only authorised specialists should carry out installation. Follow all applicable regulations. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo. If you need any assistance, please get in touch with us on 01772 284 626.
£184.00£128.80
-
Belimo TMC24A-SR damper actuator
Enhance your building’s HVAC system with the high-performance Belimo TMC24A-SR Modulating Damper Actuator, designed for optimal control and efficiency. Ideal for adjusting dampers in technical building installations, this actuator ensures reliable and precise modulation for air damper sizes up to approximately 0.4 m². Click here for the technical data PDF The Belimo TMC24A-SR modulating damper actuator is engineered to provide superior performance in HVAC applications. With a nominal voltage of AC/DC 24V and a control range of 2...10V, this actuator ensures precise control and energy efficiency. Electrical Data Nominal Voltage: AC/DC 24 V Nominal Voltage Frequency: 50/60 Hz Nominal Voltage Range: AC 19.2...28.8 V / DC 19.2...28.8 V Power Consumption in Operation: 1.5 W Power Consumption in Rest Position: 0.4 W Power Consumption for Wire Sizing: 3 VA Connection Supply / Control: Cable 1 m, 4x 0.75 mm² Parallel Operation: Yes Functional Data Torque Motor: 2 Nm Operating Range (Y): 2...10 V Input Impedance: 100 kΩ Position Feedback (U): 2...10 V Position Feedback Note: Max. 1 mA Position Accuracy: ±5% Direction of Motion Motor: Selectable with switch 0/1 Manual Override: With push-button, lockable Angle of Rotation: Max. 95° Running Time Motor: 35 s / 90° Sound Power Level: 40 dB(A) Mechanical Interface: Universal shaft clamp 6...20 mm Position Indication: Mechanical, pluggable Safety Data Protection Class (IEC/EN): III, Safety Extra-Low Voltage (SELV) Power Source (UL): Class 2 Supply Degree of Protection (IEC/EN): IP54 Degree of Protection (NEMA/UL): NEMA 2 Enclosure (UL): Type 2 EMC: CE according to 2014/30/EU Certification (IEC/EN): IEC/EN 60730-1 and IEC/EN 60730-2-14 Environmental Data Ambient Humidity: Max. 95% RH, non-condensing Ambient Temperature: -30...50°C Storage Temperature: -40...80°C Pollution Degree: 3 Operating Mode: Connected with a standard control signal of 0...10 V to drive the position defined by the control signal. Simple Direct Mounting: Universal shaft clamp for easy mounting on the damper shaft, includes an anti-rotation device. Manual Override: Push-button manual override, lockable for convenience. Adjustable Angle of Rotation: Mechanical end stops for customisable rotation limits. High Functional Reliability: Overload protection, automatic stop at end positions, no limit switches required. Electrical Accessories: Auxiliary switch (1x SPDT add-on) Feedback potentiometers (140 Ω, 1 kΩ, 10 kΩ) Signal converter voltage/current (100 kΩ 4...20 mA, Supply AC/DC 24 V) Positioners (wall mounting, built-in mounting, front-panel mounting) Mechanical Accessories: Shaft extensions, clamps, anti-rotation mechanisms, form fit inserts Position indicators Notes Designed for stationary HVAC systems, not suitable for aircraft or airborne use. Outdoor use requires protection from elements and adherence to specified ambient conditions. Installation must be performed by authorised specialists. Maintenance-free operation. Compliant with local disposal regulations for electrical components. For more information and to explore our range of Belimo products, visit our website at https://ecospares.co.uk/collections/belimo). If you need any assistance, please contact us.
£181.00£126.60
-

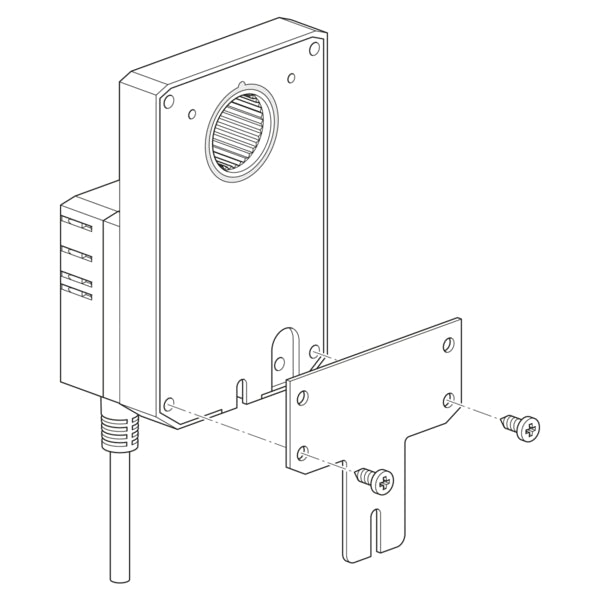

Belimo Z-SMA
Baseplate extension for SM..A to SM../AM../SMD24R
£8.70£6.09
-

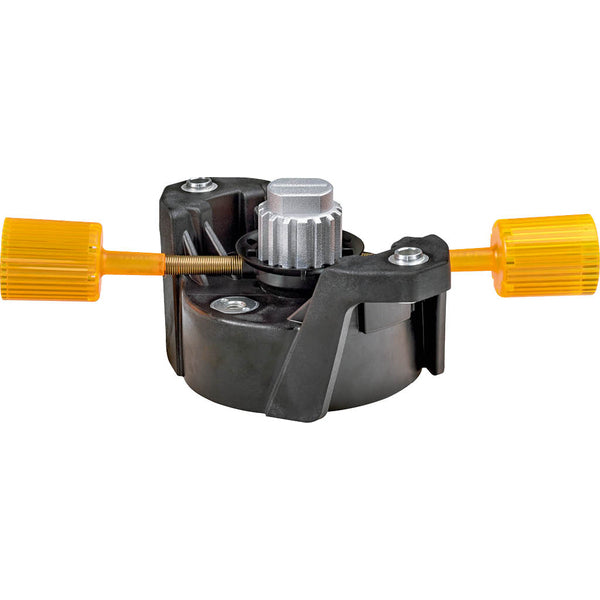

Belimo ZPR01
Belimo Position indicator and tappet shaft, F07, square 45° offset, SW 17, DN 125...300
£132.00£92.40
-

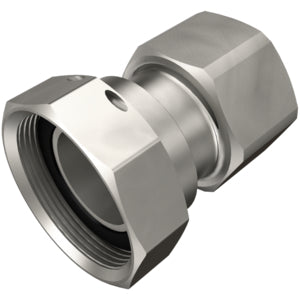

Belimo ZREV15F Pipe connector
Replacement for the discontinued EXT-EF-15F Pipe connector for EPIV / Energy valve with external thread, DN 15, Rp 1/2", G 3/4" Pattern: 2-way Fluid: Water, water with glycol up to max. 60% vol. Fluid temperature: -20...120°C [-4...248°F] Pipe connection: Internal thread
£10.80£9.90
-

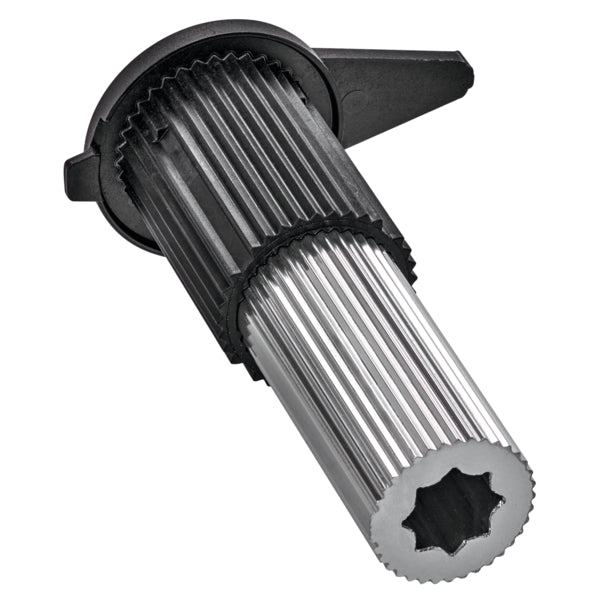

Belimo ZSFV-09 Adapter
Belimo Form fit adapter square, 9x9x55 mm (LxWxH), for SRF..-R
£55.30£38.70
